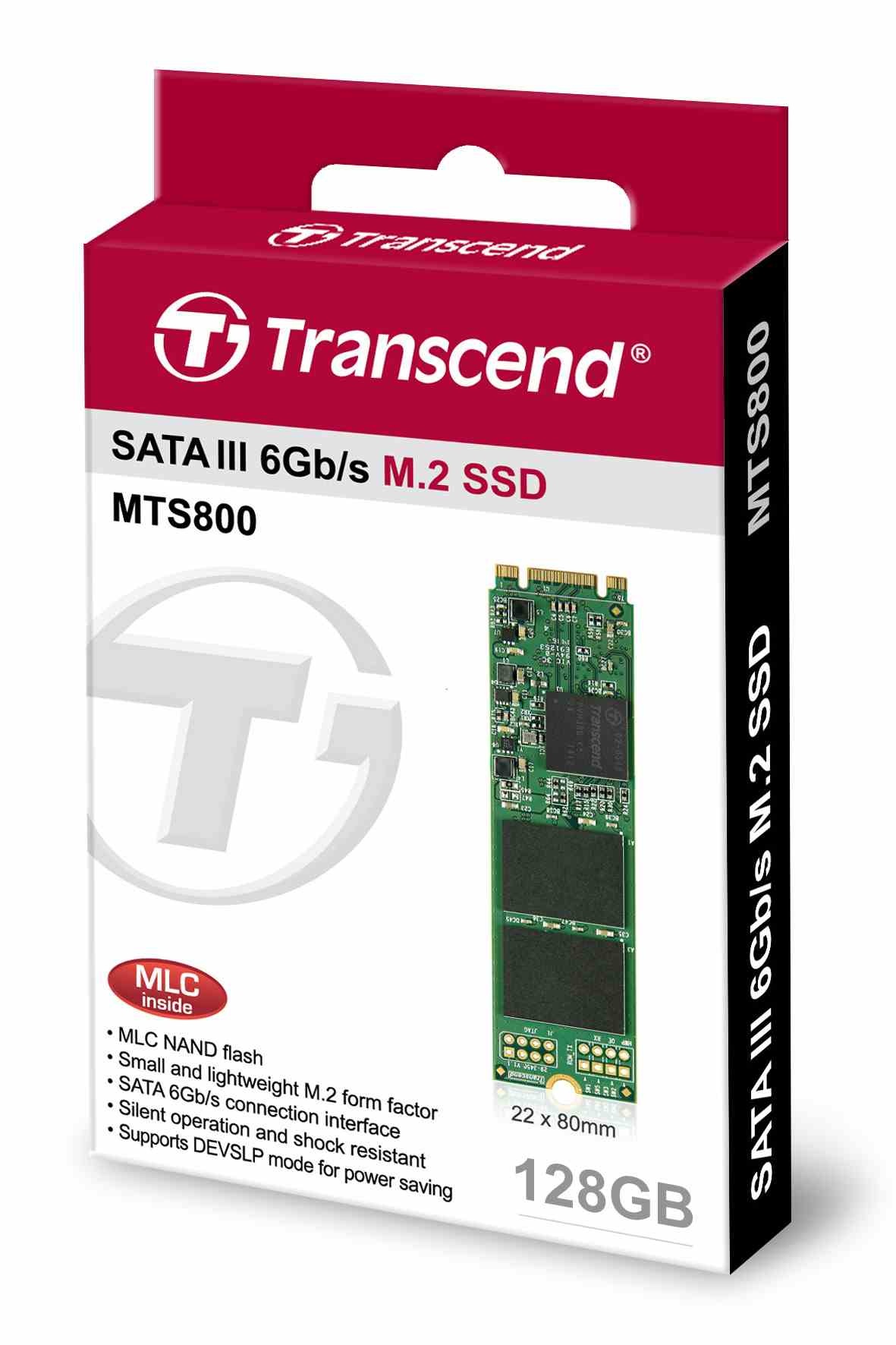

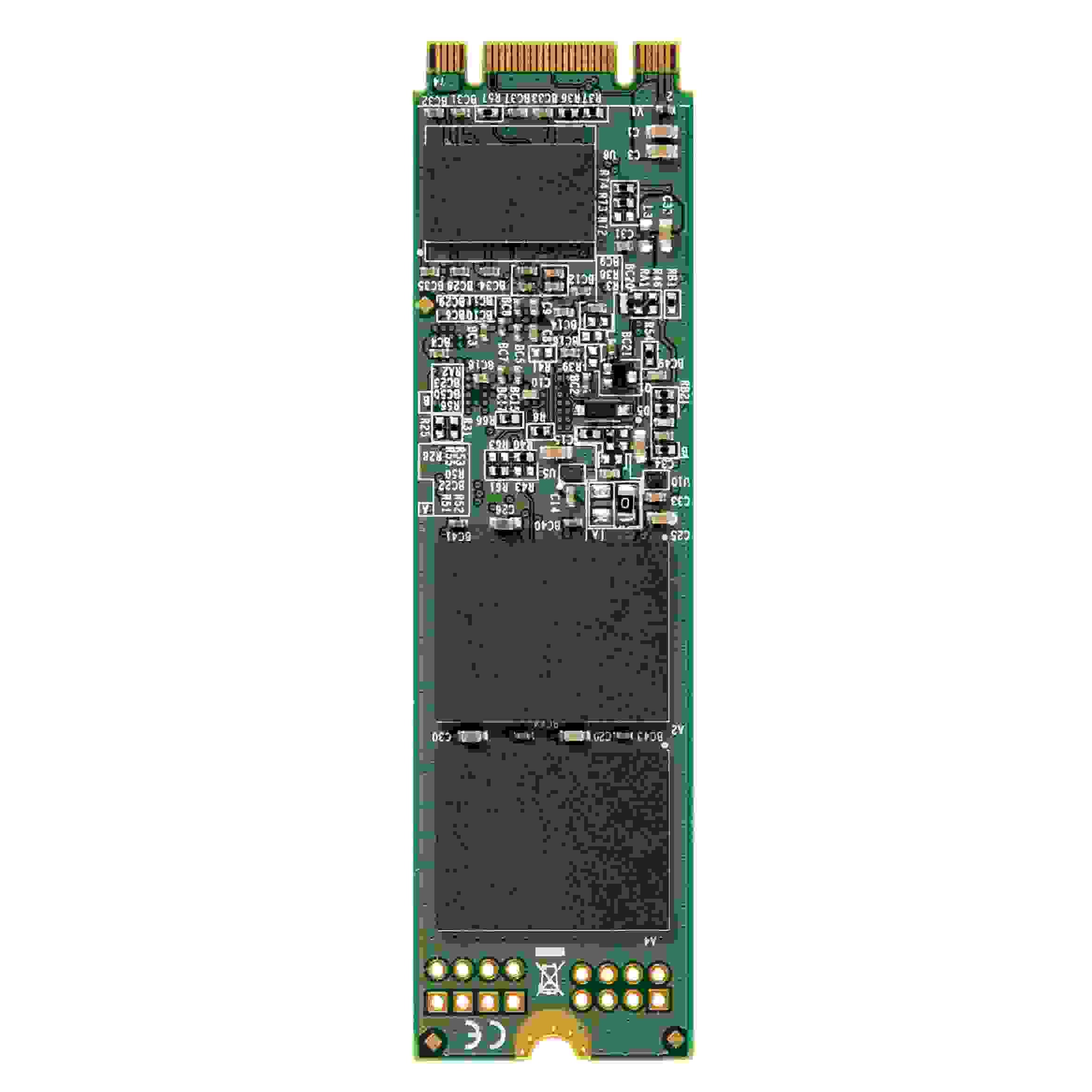

Transcend's MTS800 M.2 SSD's next generation SATA III 6Gb/s interface and ultra compact dimensions make it best suited to address the high performance needs and strict size limitations of small form factor devices. This means it is perfect for use in today's modern Ultrabooks and thin, light notebooks. Meeting the latest SATA III 6Gb/s specifications, and featuring a powerful controller and exceptional transfer speeds of up to 560MB/s read and 460MB/s write*, the M.2 SSD easily handles everyday computing tasks as well as demanding multimedia applications.
Space-saving M.2 form factor (80mm) - ideal for mobile computing devices
Supports DevSleep mode, which allows devices to completely shut down the SATA interface and conserve battery life, unlike existing partial/slumber states
DDR3 DRAM cache
Supports S.M.A.R.T., TRIM and NCQ commands
RoHS compliant
Transcend's SATA III 6Gb/s MTS800 M.2 SSD supports Intel® Smart Response Technology (ISRT), which allows you to configure your computer system with an SSD used as cache memory between the hard disk drive and system memory. This provides the advantage of having a hard disk drive for maximum storage capacity with SSD-like overall system performance.
ISRT works by monitoring which programs and files you access most frequently and storing them on the SSD. As a result, application launch speed and overall system responsiveness are significantly improved, while space on your large-capacity hard drive is freed up for other programs and files. In this configuration, only one drive letter is displayed; no additional drive letter is required for the SSD used as cache.
Specifications:
Dimensions (max.) | 80.0mm × 22.0mm × 3.58mm (3.15" x 0.87" x 0.14") |
Weight | 9g (0.32 oz) |
Storage Media | MLC NAND Flash memory |
Operating Voltage | DC 3.3V±5% |
Operating Temperature | 0°C(32°F) to 70°C(158°F) |
Certificates | CE, FCC, BSMI |
Warranty | Three-year Limited Warranty (Warranty does not apply when SSD Scope's wear-out indicator displays 0% within 3 years.) |
Note | Speed may vary due to host hardware, software, usage and storage capacity. |
System Requirements | Desktop or notebook computer with M.2 interface (a SATA 6Gb/s port is needed for best performance), and one of the following operating systems: |
Windows 7 | |
Windows 8 | |
Windows 8.1 | |
Windows 10 | |
Linux Kernel 2.6.31 or later |
