HARDWARE FEATURES | |
Plug Type | EU |
Standards and Protocols | HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz) |
Interface | 3 Gigabit Ethernet Ports, 1 Power Socket |
Button | Pair, LED On/O?, Wi-Fi, Reset |
Power Consumption | TL-WPA8631P: Maximum: 13.7W, Typical: 11W TL-PA8010P: Maximum: 4.9W, Typical: 4.6W |
LED Indicator | Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz) |
Dimensions (WxDxH) | TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm) TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm) |

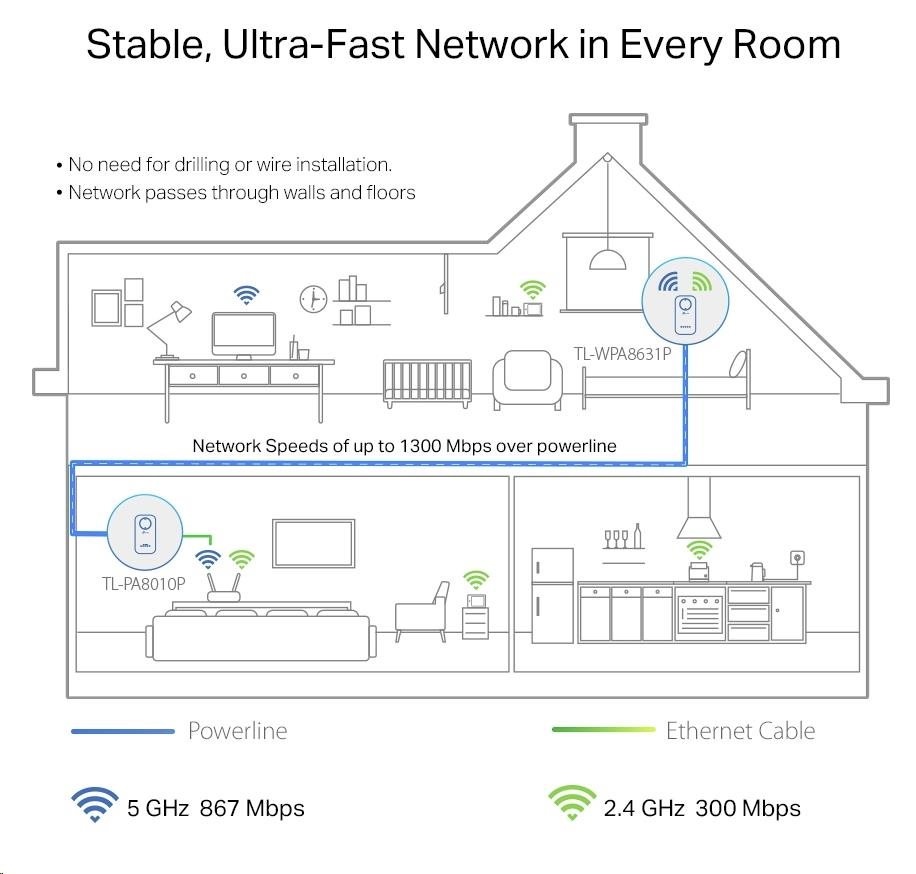

Range | Up to 300 meters/1000 feet over existing electrical wiring* |
Compatibility | Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters* |
Transmission Speeds | Powerline: up to 1300 Mbps Ethernet: 10/100/1000 Mbps |
SOFTWARE FEATURES | |
Security | Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions, Powerline: 128-bit AES Encryption |
Management | TP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download |
Modulation Technology | OFDM |
OTHERS | |
Certification | CE, RoHS |
Package Contents | AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P; 2× Ethernet Cables; 1× Quick Installation Guide |
System Requirements | System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux System Requirements for tpPLC Utility: Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later) |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% non-condensing |
