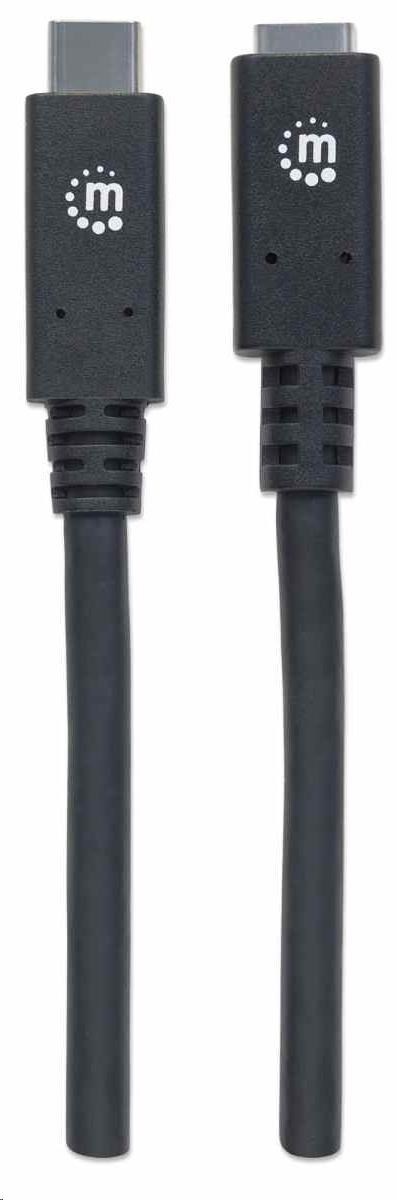

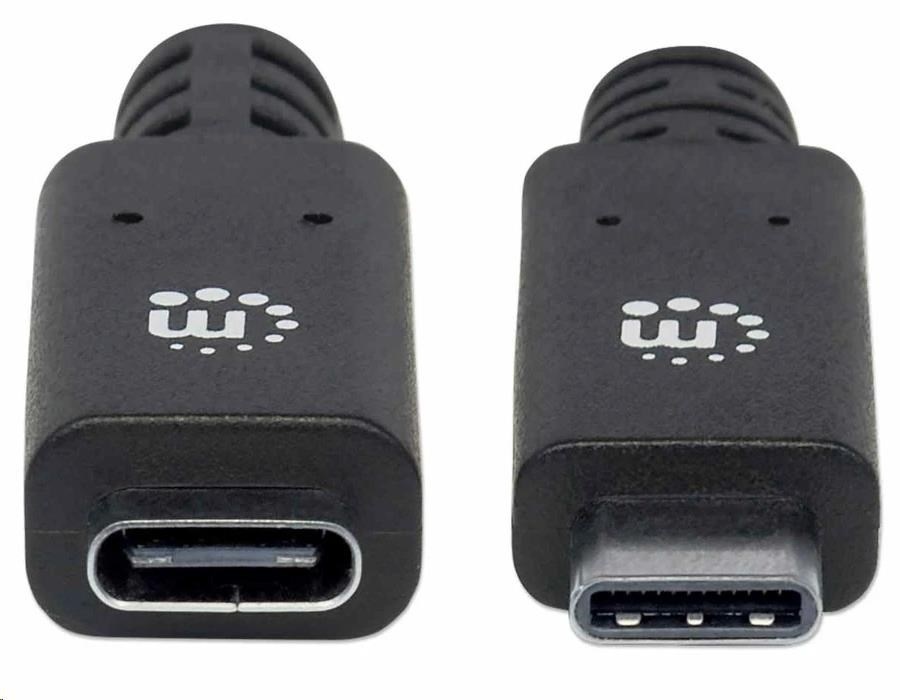

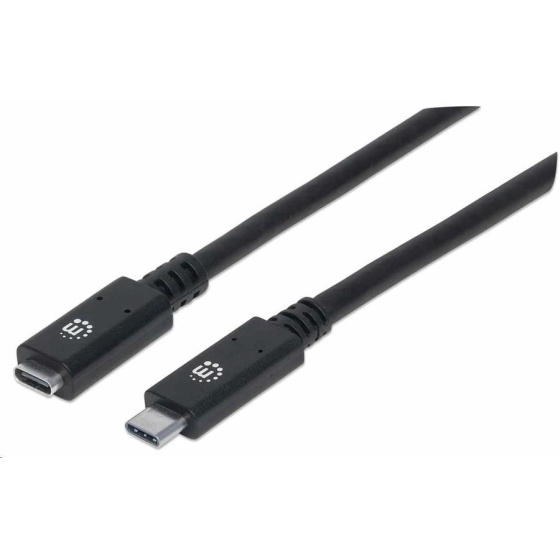

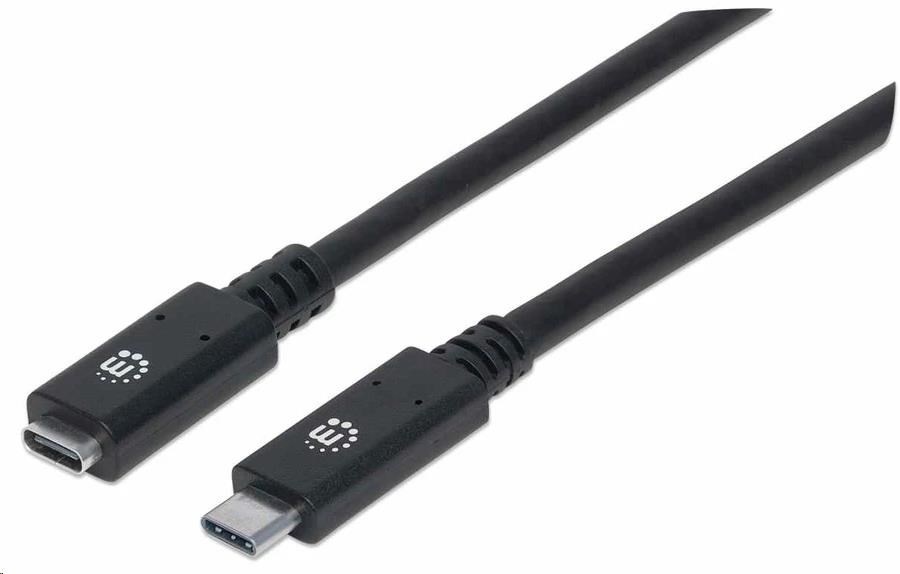

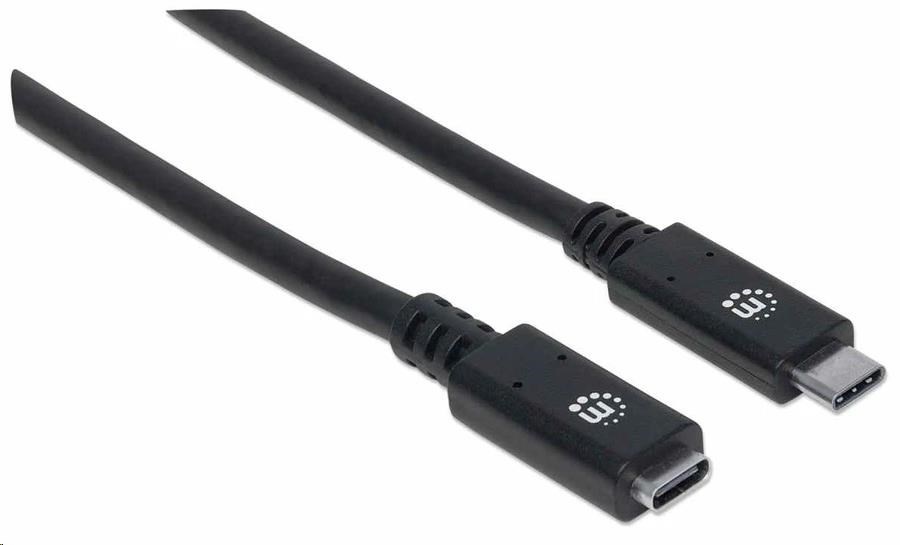

The Manhattan SuperSpeed+ USB-C Extension Cable achieves better access to a Type-C port or connection. This extension cable can be used to extend the distance of a Type-C cable, create easier access to a Type-C port, or prevent port wear and tear. Ideal for use with any USB Type-C plug-and-play device, the Manhattan SuperSpeed+ USB-C Extension Cable supports fast, reliable data transfer rates up to 10 Gbps on Windows and Mac systems and current up to 5 amps (100 W). Nickel-plated contacts, shielding and fully molded boots with strain relief provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.
TECHNICAL SPECIFICATIONS
Standards and Certifications | - UL 2725 - USB 3.2 Gen 2 |

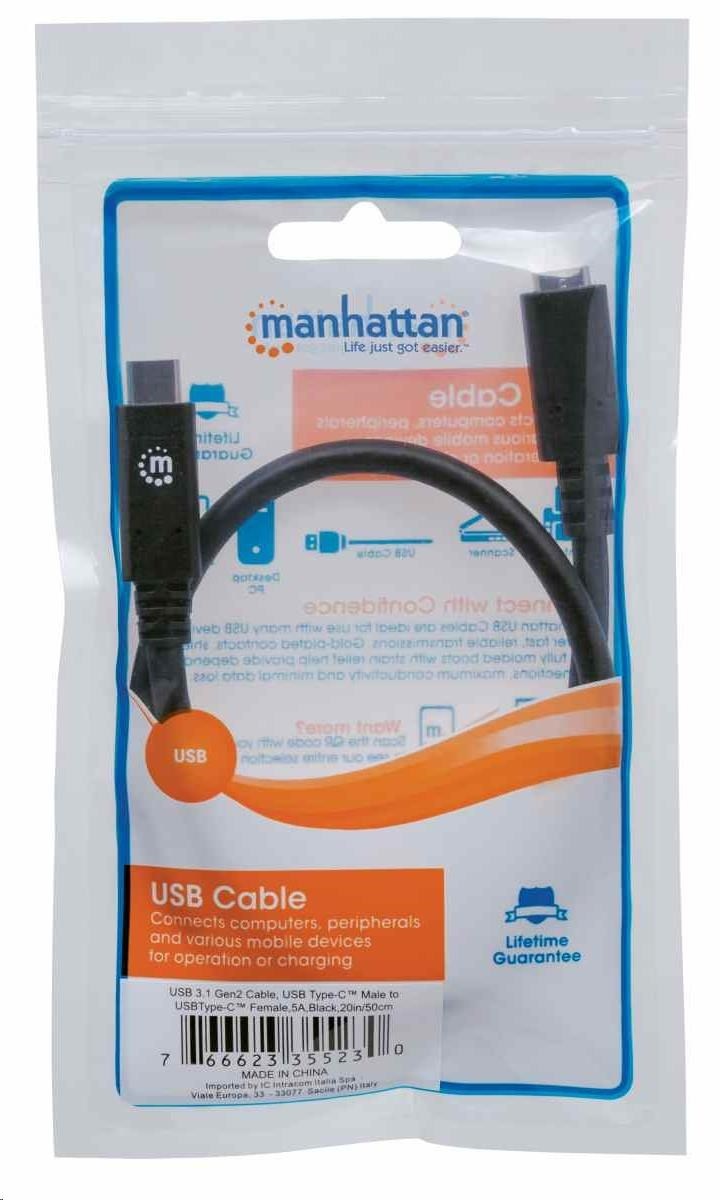

Package Contents | SuperSpeed+ USB-C Extension Cable |
Connectors | - USB-C male - USB-C female - Nickel plated - Molded PVC boot |
Cable | |
Withstanding voltage | 300 VDC 10 ms |
Insulation resistance | 10 MOhm min. |
Conductive resistance | 2 Ohm max. |
.
