Manhattan rozbočovač, MST hub DisplayPort na Dual HDMI (M/F), černá

Kód: 254973
Ihned k odeslání
Termín a způsob doručení
Druh IO zařízení:MST hub; Provedení:Externí.Více
Vyberte si zvýhodněné balení
Množstevní slevy
1 665
1 376.03  bez DPH
ks
envelope
Dotaz
bell
Hlídat
Parametry
Výrobce:
Kód:
254973
EAN:
766623152716
Záruka:
24 Měsíc(ů)
Druh IO zařízení:
MST hub
Provedení:
Externí

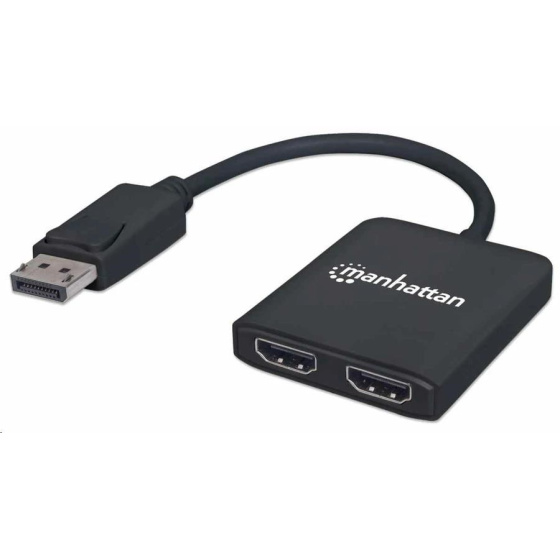

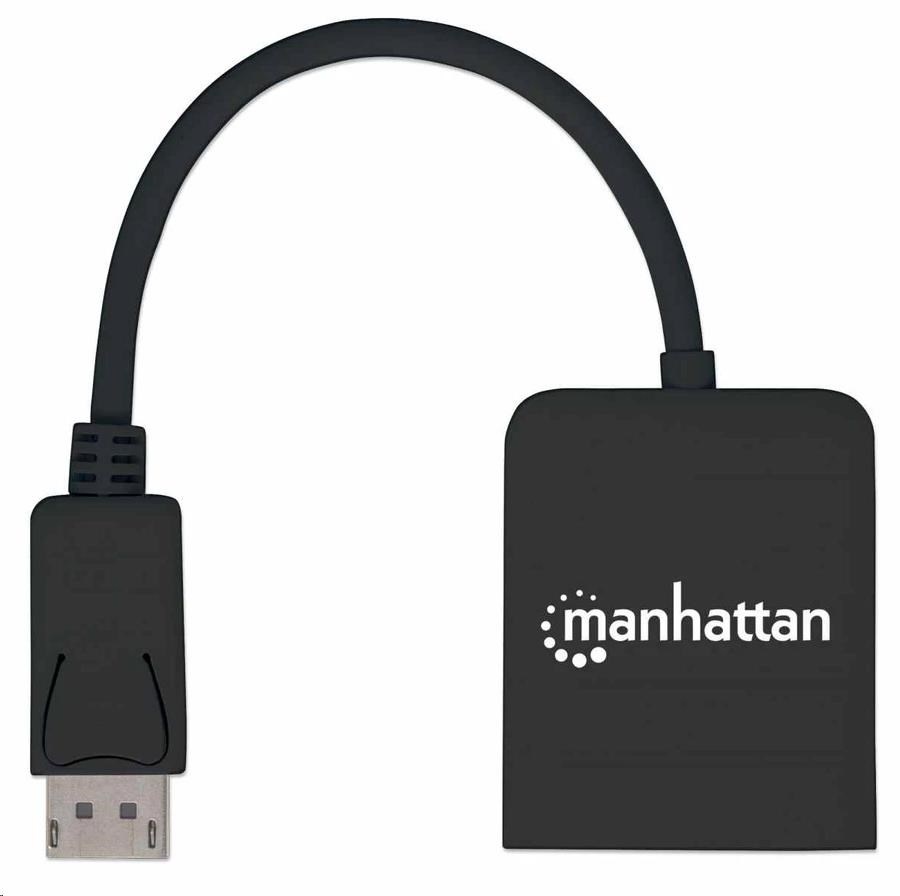

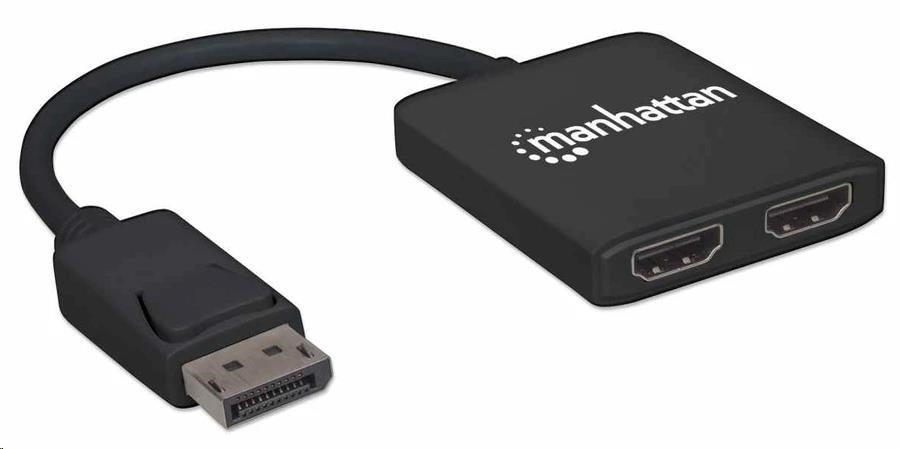

Popis Manhattan rozbočovač, MST hub DisplayPort na Dual HDMI (M/F), černá

DisplayPort to Dual HDMI - MST Hub

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.
The Manhattan DisplayPort to Dual HDMI - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual HDMI - MST Hub features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation

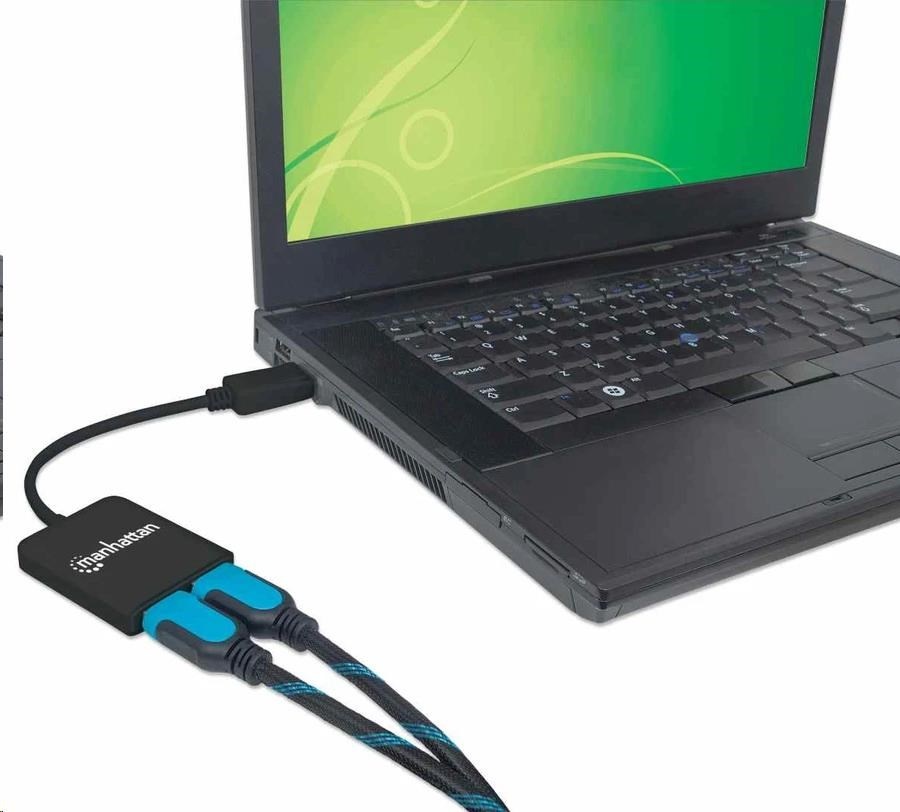

Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual HDMI - MST Hub can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort/HDMI solution is complete — no software/hardware configuration or complicated settings required.

  • Duplicates an Ultra-High-Definition (UHD) DisplayPort (DP) signal for up to two UHD HDMI displays
  • 4K@30Hz resolution, full 3D video and Deep Color
  • Supports compressed DTS Master Audio as well as 7.1 surround sound audio up to 192 kHz
  • Supports Mirror, Extended and Multi-Stream Transport (MST) modes to maximize work or gaming capabilities
  • Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
  • Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
  • MST mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840x2160 at 30 Hz — as one; requires a graphics card that supports video-wall function
  • USB powered with Plug and Play installation; no special setup or remote required
  • Integrated DisplayPort cable
  • Ideal for enhancing display capabilities or creating a video wall in locations such as schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
  • HDCP 2.2 compliant
  • Gold-plated contacts for corrosion-free connections
  • Three-Year Warranty

TECHNICAL SPECIFICATIONS

Standards and Certifications DP 1.2
HDCP 2.2
DVI 1.0
CTS 1.4a
CE
FCC
RoHS2
System Requirements Windows XP/Vista/7/8.1/10
DP 1.2 graphics card

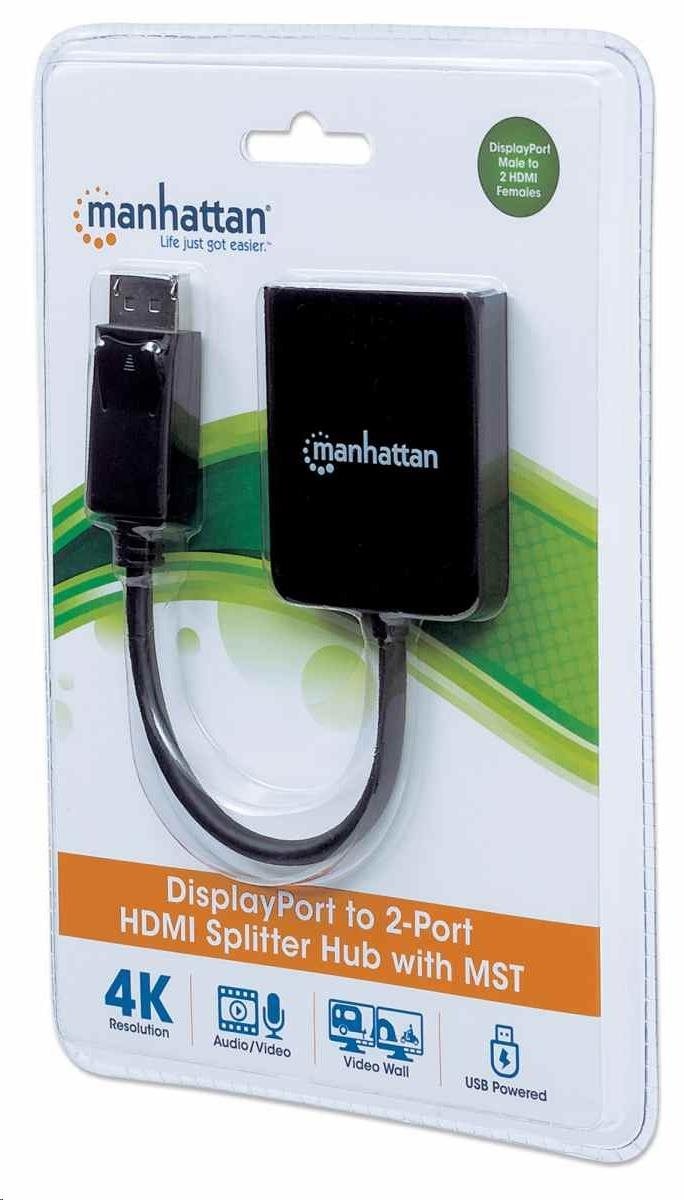

Package Contents DisplayPort to Dual HDMI - MST Hub
USB power cable
Quick Instruction Guide

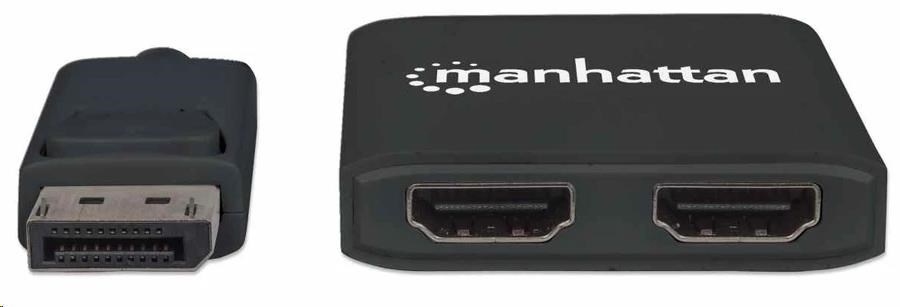

Connections One DisplayPort (DP) male (input)
Two HDMI female (output)

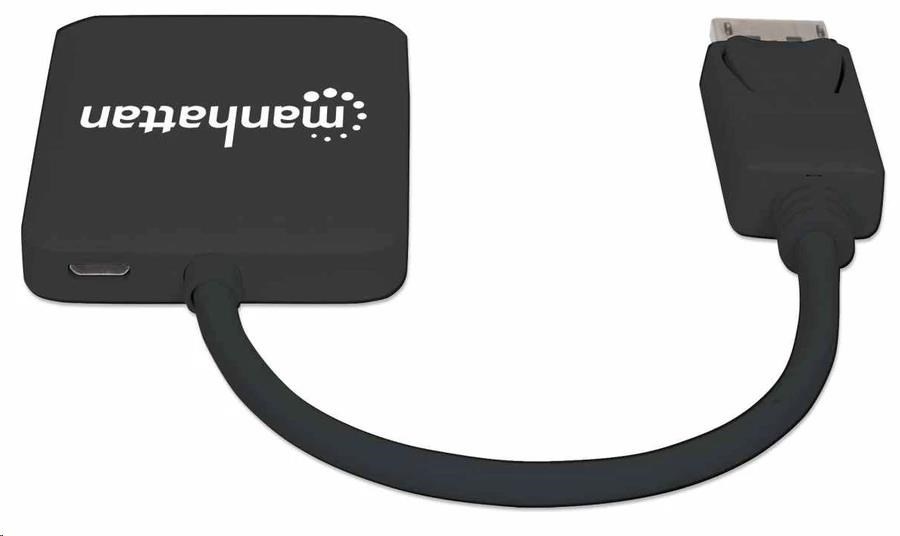

One 5 V / 2 A USB (Micro-B) power female (input)
Signal Input/Output
Input video signal 0.5 – 1.0 V p-p
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 5.4 Gbps, 3840x2160 at 30 Hz resolution
Output video HDCP 2.2, DVI 1.0
Video Resolutions
DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
Physical
Dimensions 255 x 50 x 11 mm (9.8 x 2.0 x 0.4 in.)
Weight 50 g (1.8 oz.)
Housing plastic
Operating Environment
Operation Temperature 0 – 40°C (32 – 104°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Humidity (noncondensing) 0 – 96%

.
