High-Performance Storage for Desktop and Laptop PCs

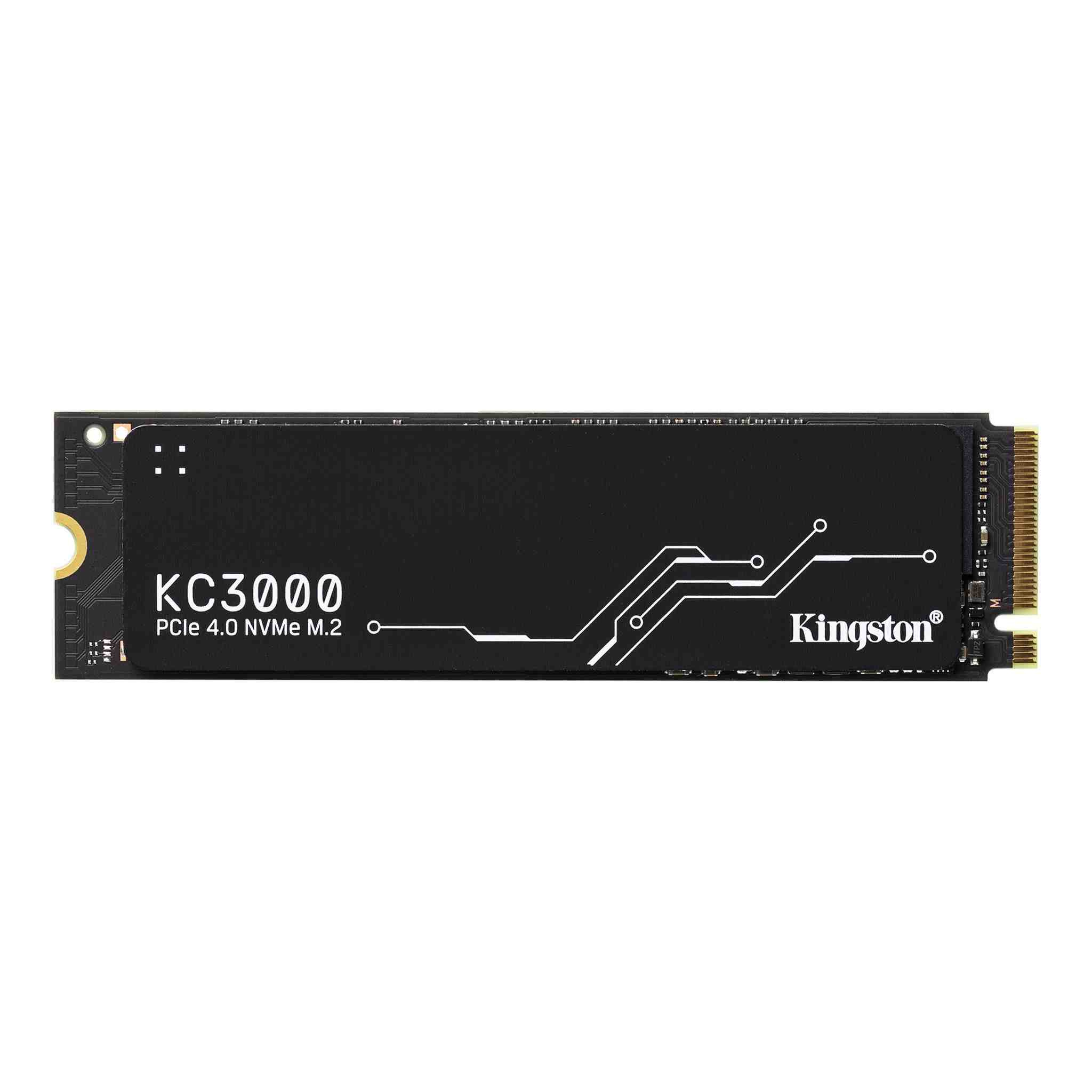

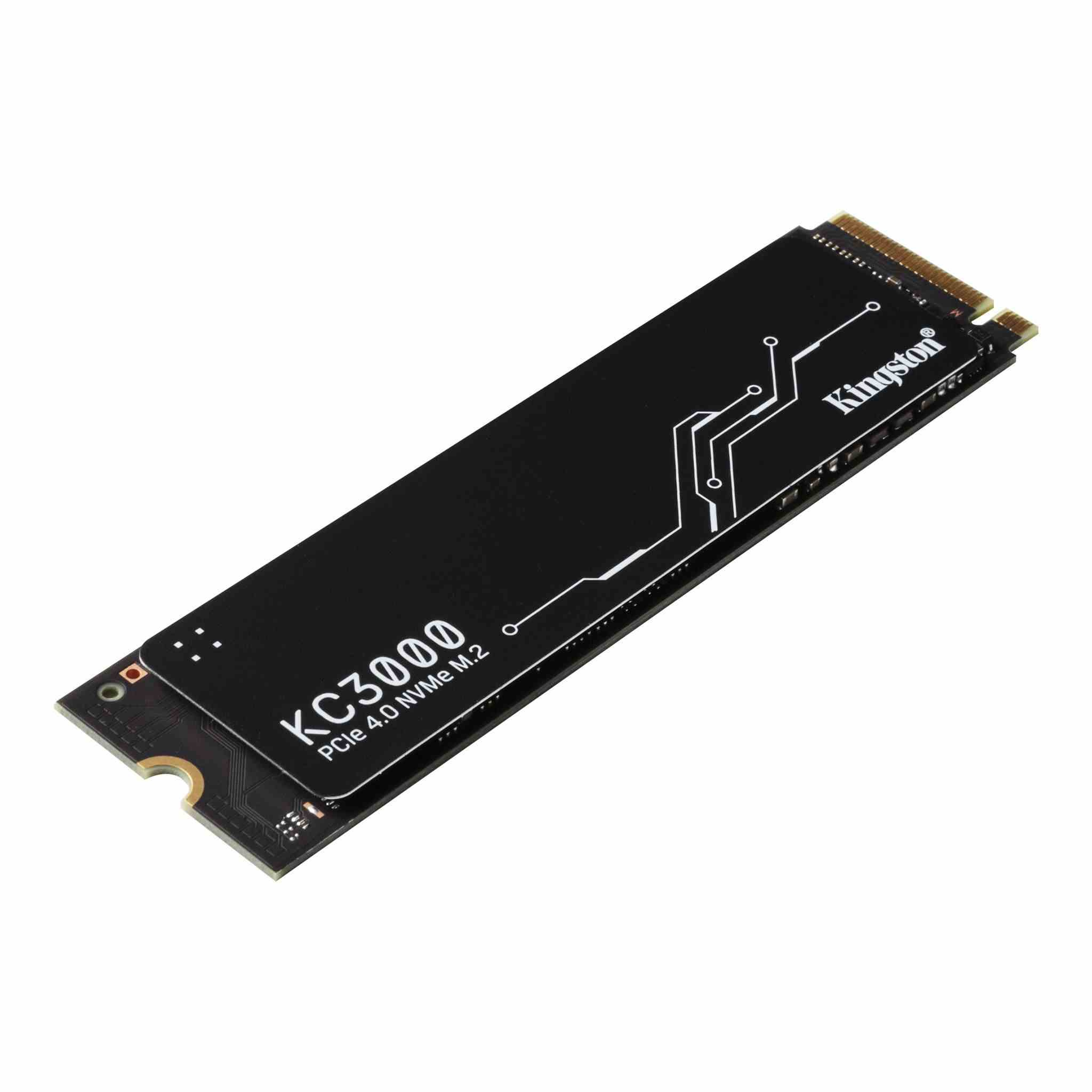

Kingston KC3000 PCIe 4.0 NVMe M.2 SSD delivers next-level performance using the latest Gen 4x4 NVMe controller and 3D TLC NAND. Upgrade the storage and reliability of your system to keep up with demanding workloads and experience better performance with software applications such as 3D rendering and 4K+ content creation. With formidable speeds up to 7,000MB/s read/write, it ensures improved workflow in high-performance desktop and laptop PCs making it ideal for power users who require the fastest speeds on the market.
The compact M.2 2280 design fits seamlessly into motherboards and gives greater flexibility where high-power users appreciate responsiveness and superior loading times.
Full capacities available from 512GB–4096GB2 to meet your data storage requirements.
TECHNICAL SPECIFICATIONS
Form Factor | M.2 2280 |
Interface | PCIe 4.0 NVMe |
Capacity | 1024 GB |
Controller | Phison E18 |
NAND | 3D TLC |
Sequential Read/Write | 7,000/6,000MB/s |
Random 4K Read/Write | up to 900,000/1,000,000 IOPS |
Total Bytes Written (TBW) | 800 TBW |
Power Consumption | 5mW Idle / 0.33W Avg / 2.8W (MAX) Read / 6.3W (MAX) Write |
Storage Temperature | -40°C~85°C |
Operating Temperature | 0°C~70°C |
Dimensions | 80mm x 22mm x 2.21mm |
Weight | 7g |
Vibration Operating | 2.17G Peak (7-800Hz) |
Vibration Non-operating | 20G Peak (20-1000Hz) |
MTBF | 1,800,000 hours |
Warranty/support | Limited 5-year warranty with free technical support |
.
