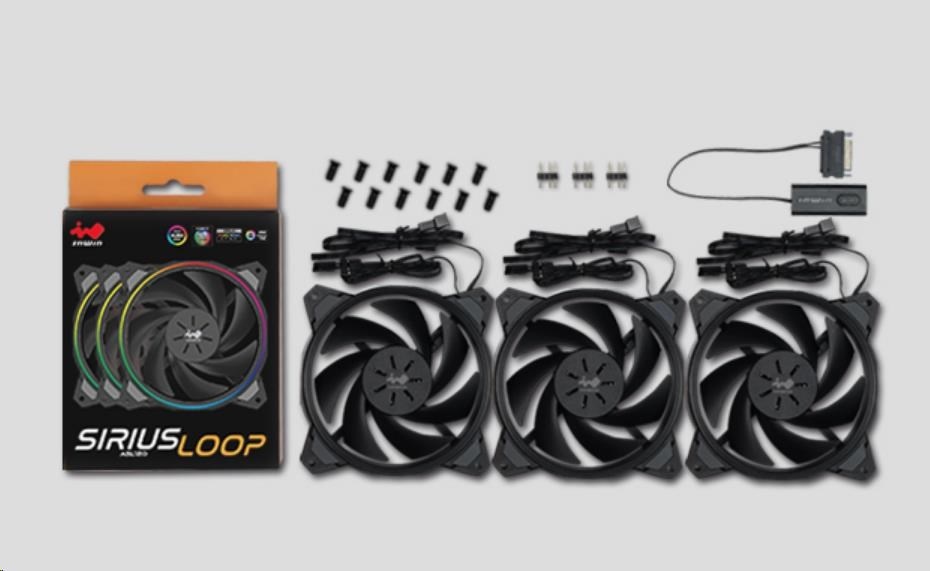

IN WIN Fan Sirius Loop ASL 120, Triple Pack

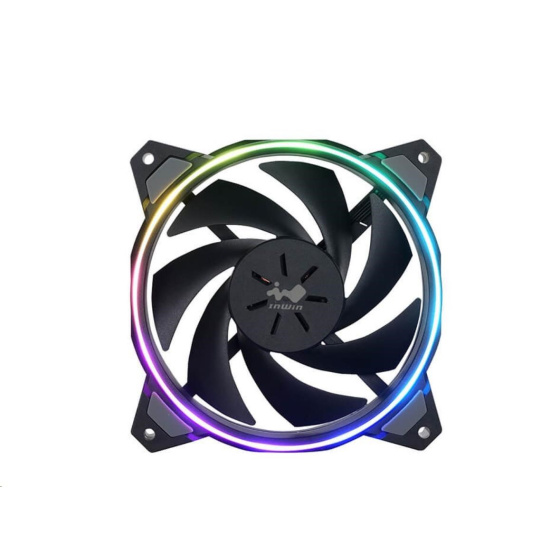

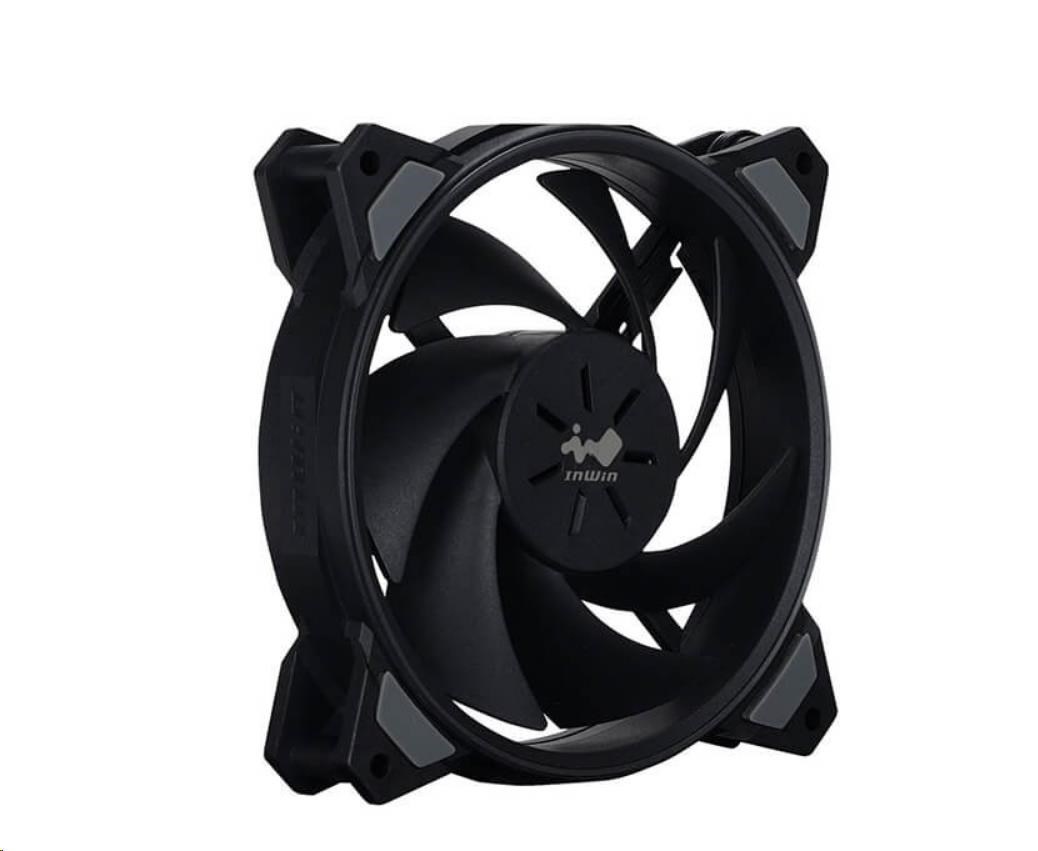

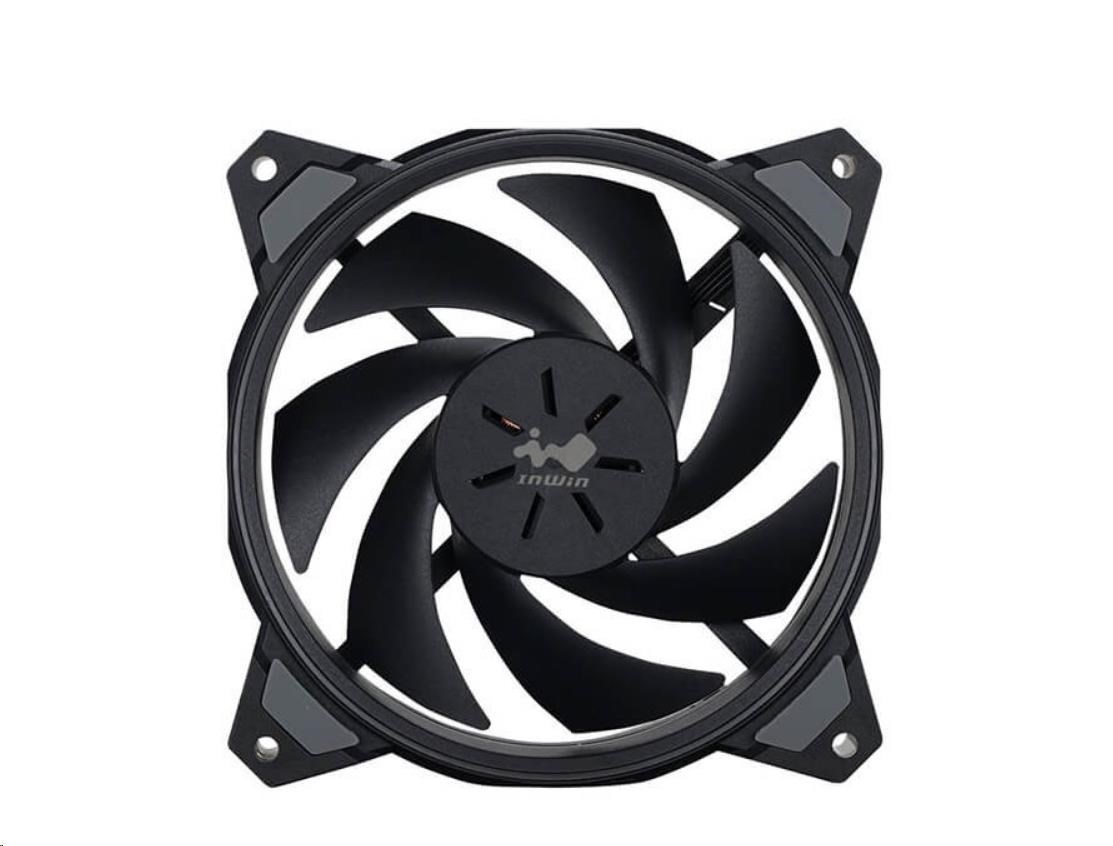

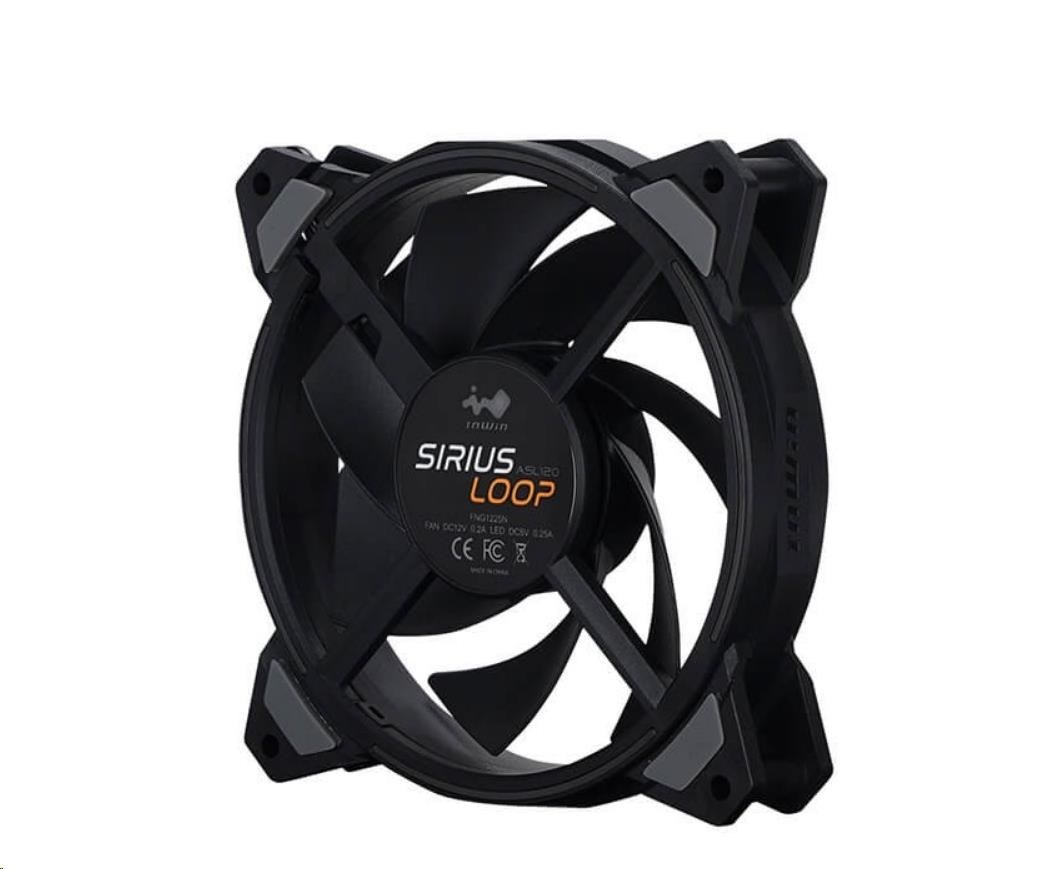

Sirius Loop’s larger blades and thinner frame allows the fan to generate more air, which is efficiently pushed by the sickle-shaped blades. The large surface area creates more airflow and pressure. The center of the fan is also built with ventilation holes to cool the bearings and extend the fan’s lifespan.

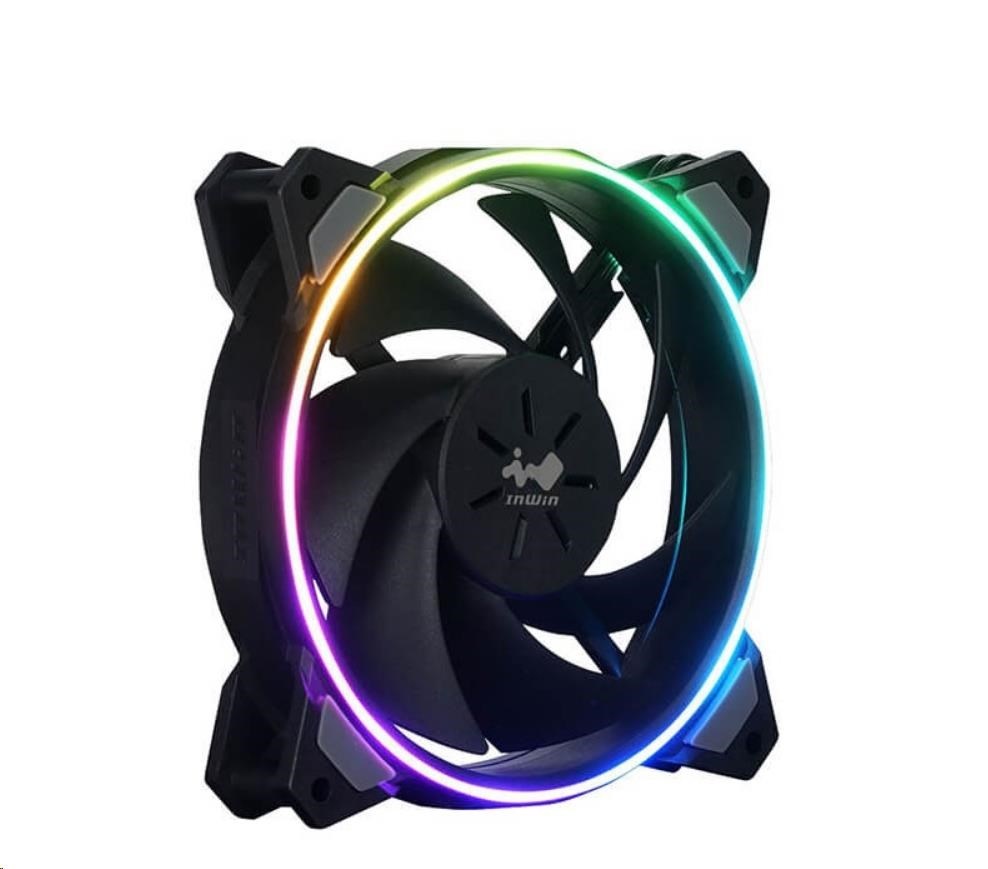

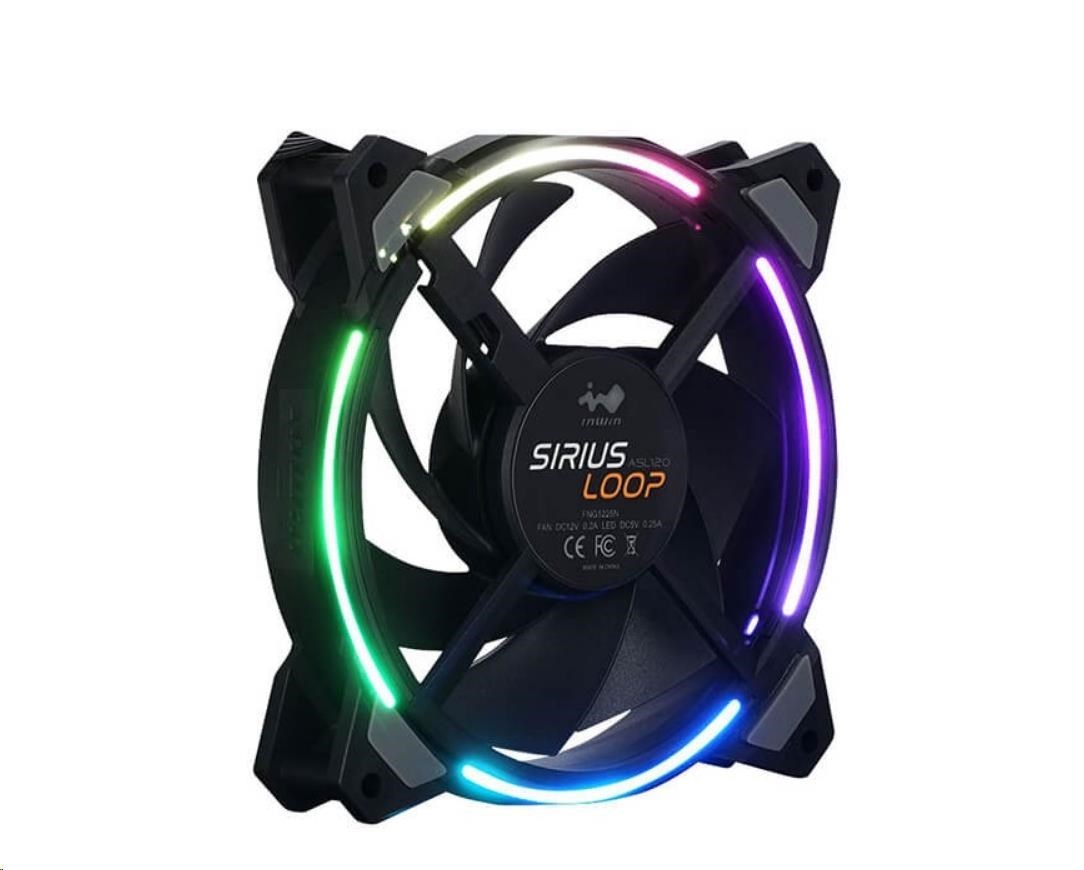

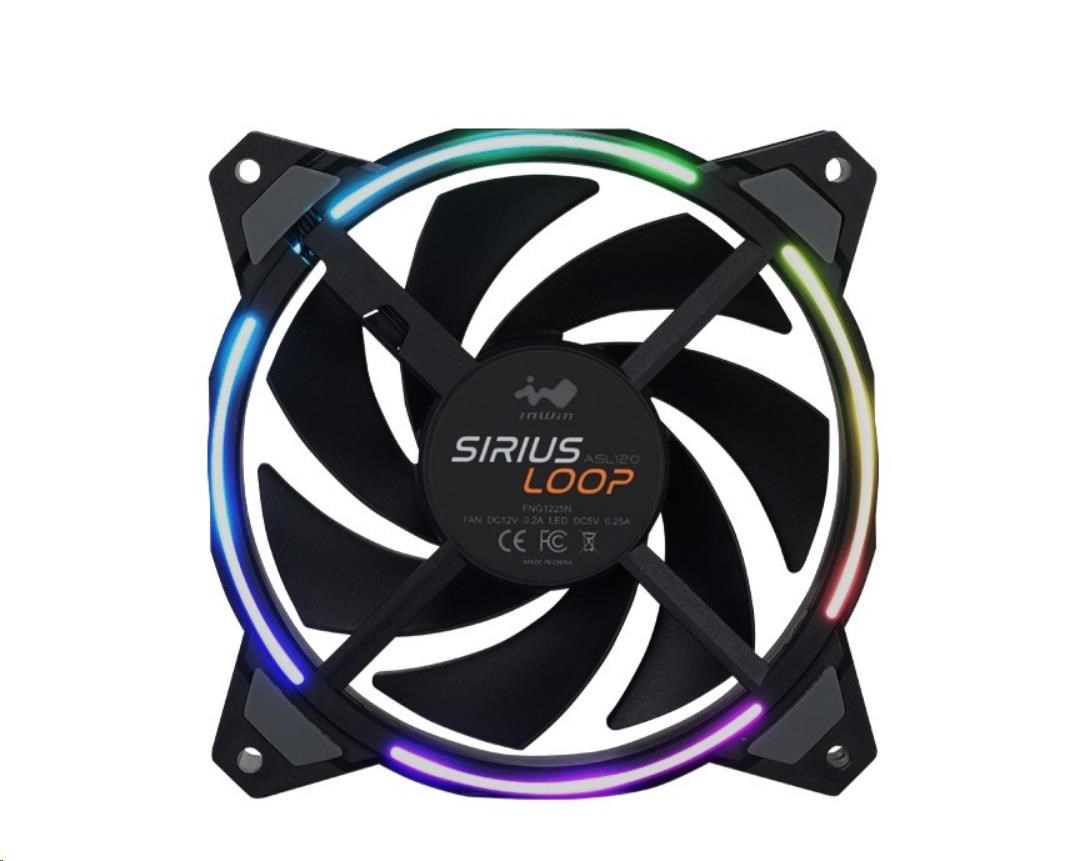

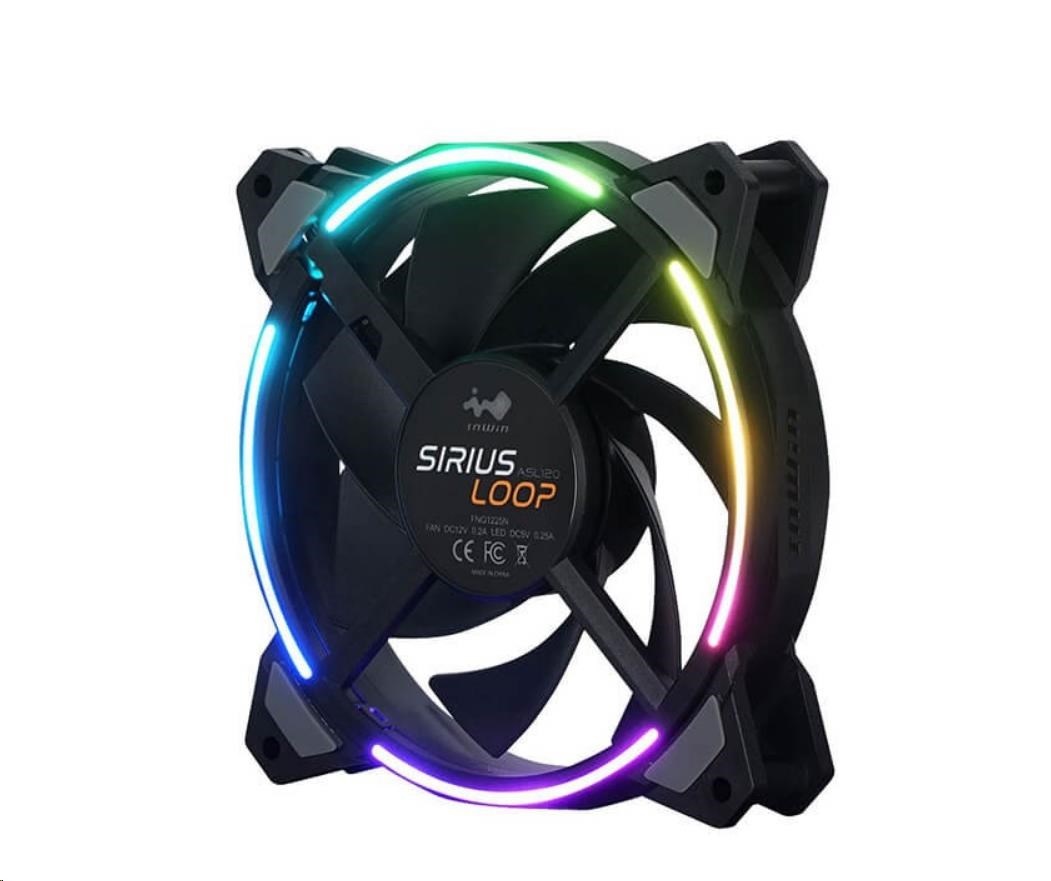

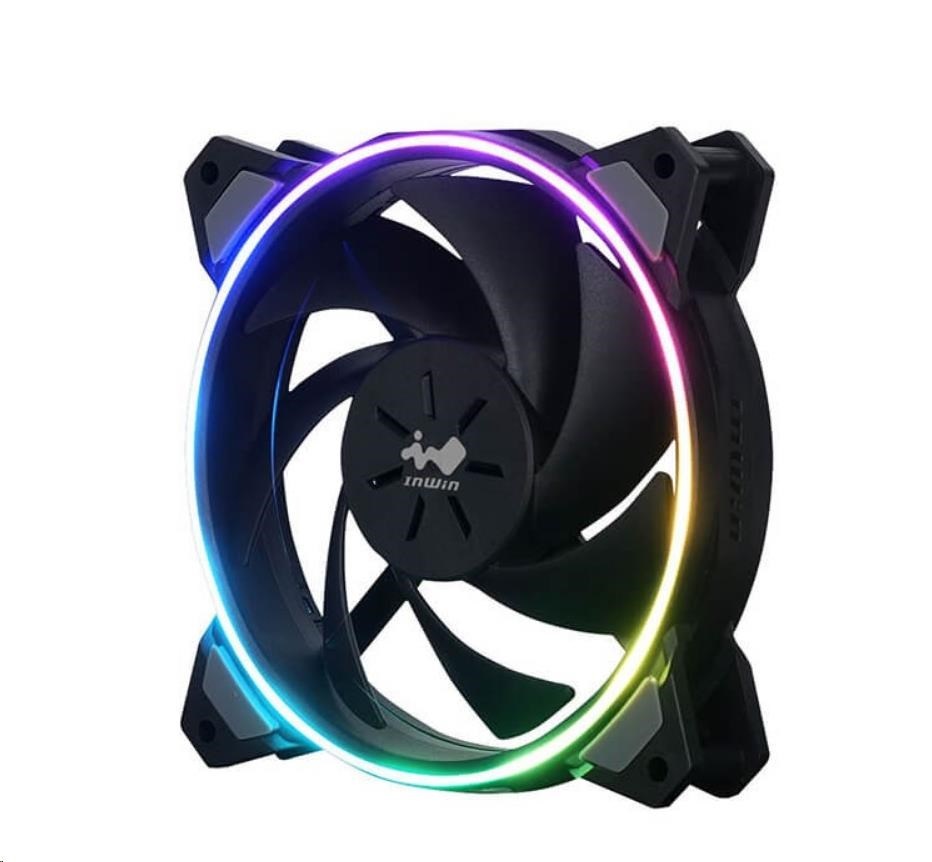

The circular addressable lighting effect is complemented with black fan blades to add that solid touch of RGB lighting in PC builds. The dual-looped design provides users the option to install on either side.

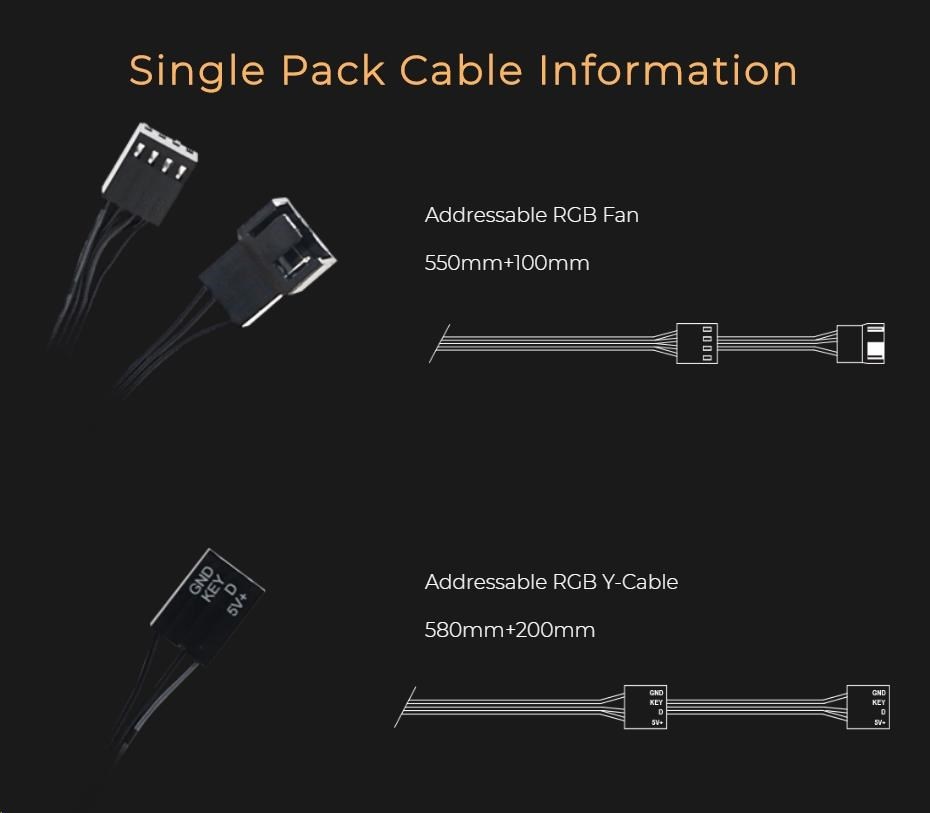

Connect Sirius Loop directly to the motherboard’s addressable header, and witness and control the lighting effect through the motherboard software!
By simply connecting Sirius Loop to the motherboard, the fan speeds can be automatically controlled through the signal sent to the motherboard and effectively remove the heat round the chassis.

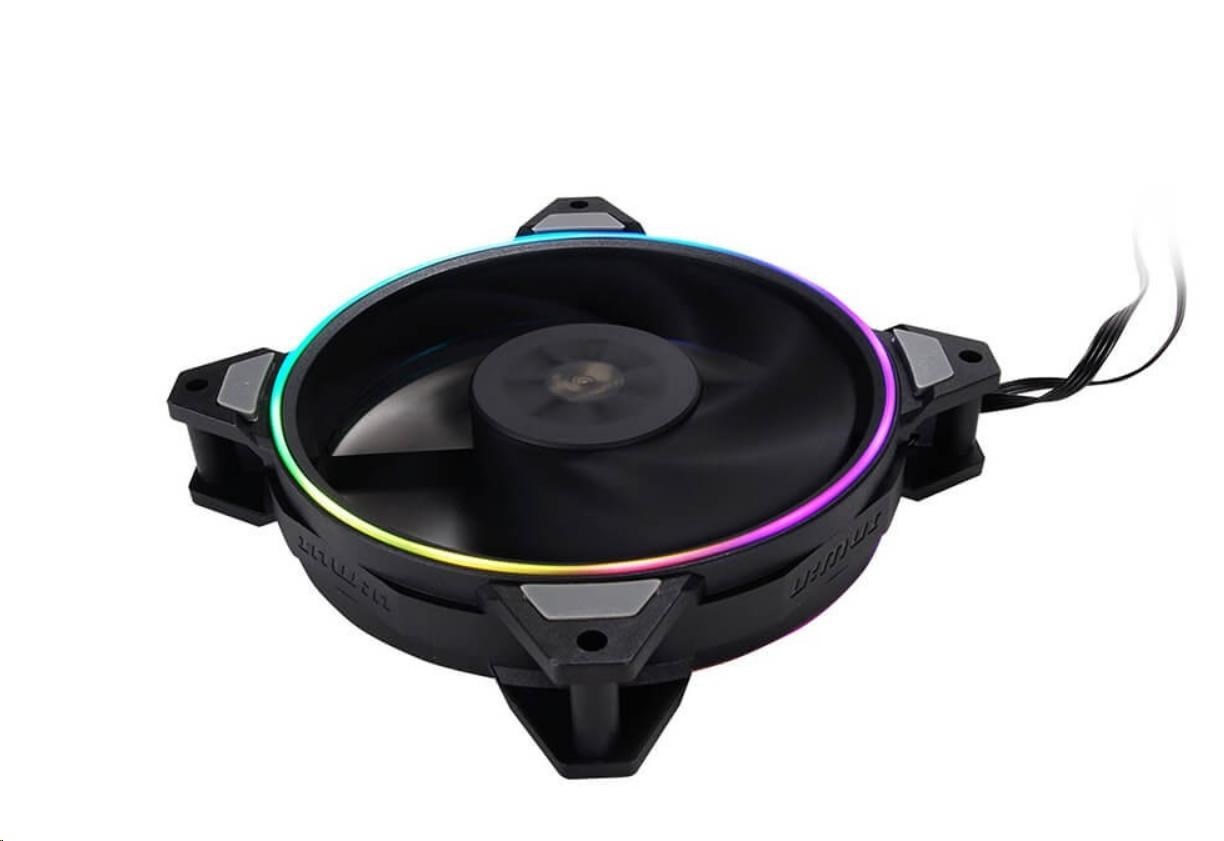

Four shockproof rubber stands are strategically placed on the corners of Sirius Loop to keep its overall look and help reduce vibrations while in operation.
TECHNICAL SPECIFICATIONS
Product Name | Sirius Loop ASL120 |
PN | ASL120FAN-3PK |

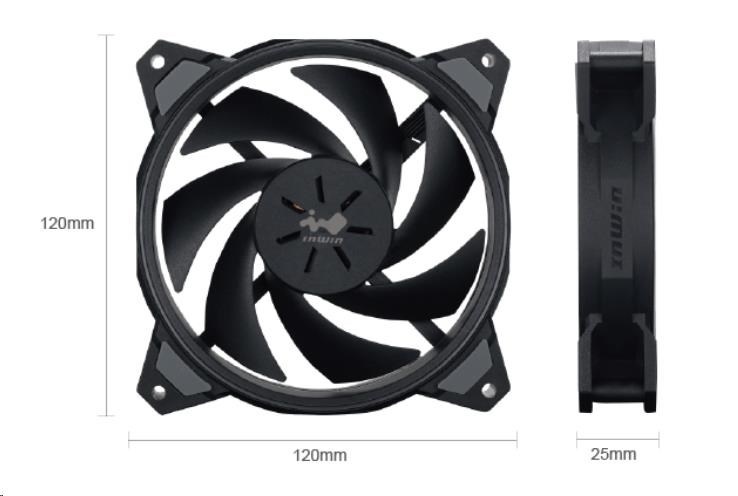

Fan Size | 120 x 120 x 25mm |
Material | PBT |
Rated Voltage | DC 12V |
Rated Power | 1.2W |
Rated Current | 0.1A |
ADD RGB Rated Voltage | DC 5V |
ADD RGB Rated Power | 1.25W |
ADD RGB Rated Current | 0.25A |
Speed Mode | PWM 500~1800 RPM |
Air Flow | 50 CFM |
Air Pressure | 1.67mm/ H2O |
LED | Addressable RGB |
Connector | 4-Pin |
Noise Level | 27 dB(A) Max. |
Bearing Type | Long Lifespan Sleeve Bearing |
Life expectation | >30,000 hrs |
Net Weight | 600g |
Package Dimension (H x W x L) | 185 x 125 x 80mm |
Warranty | 2 years |
* Specifications may vary based on different regions.
.
