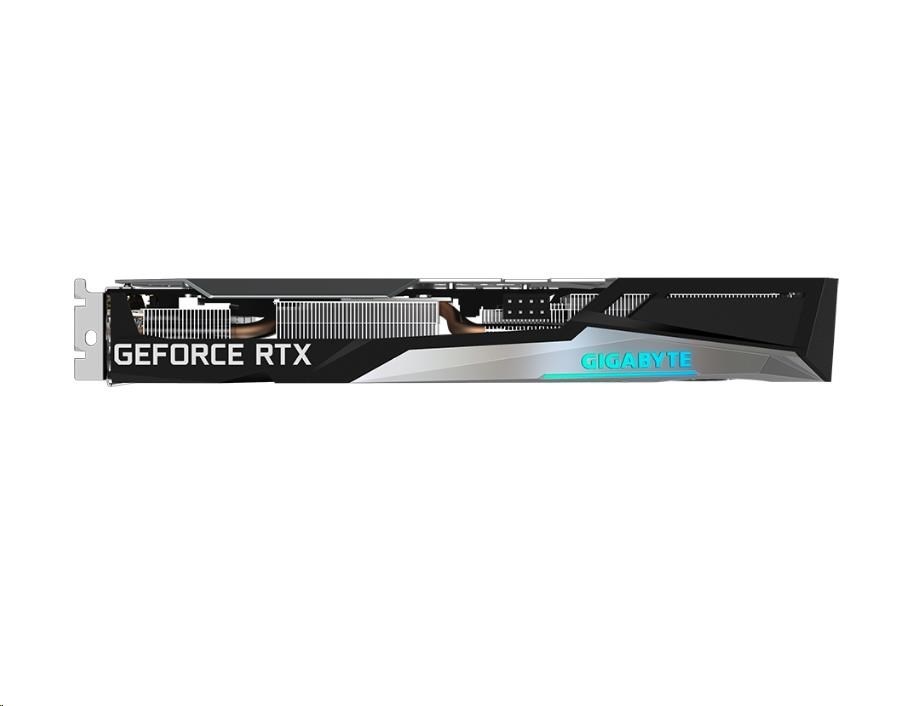

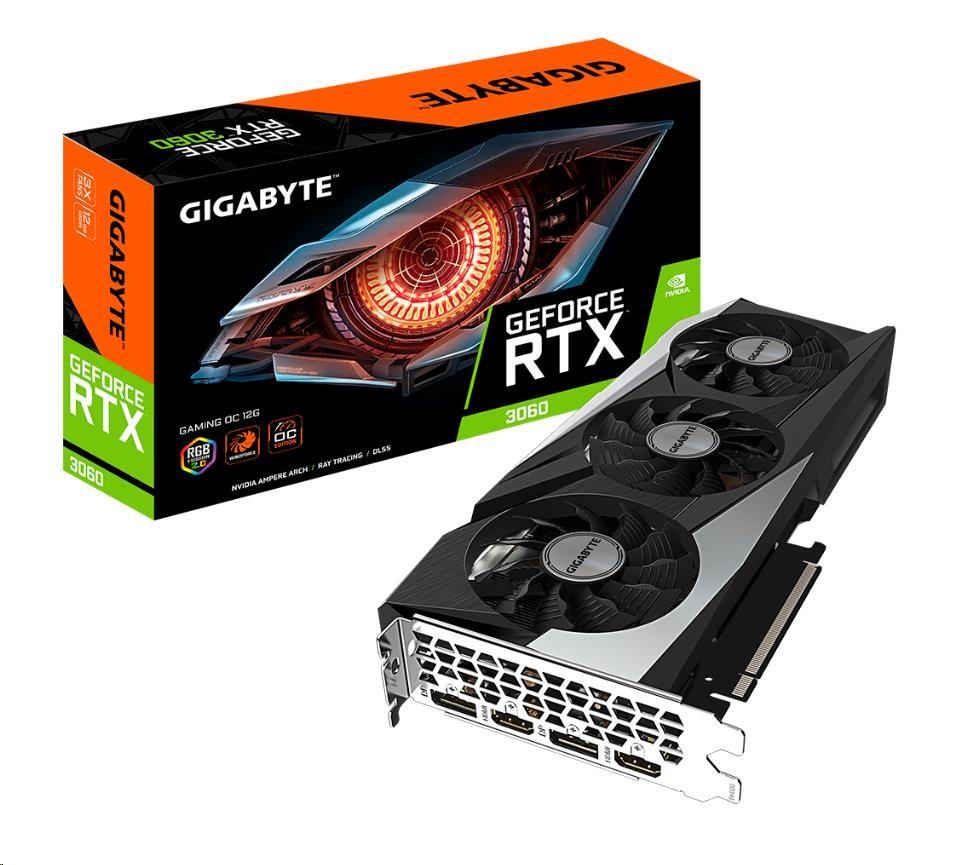

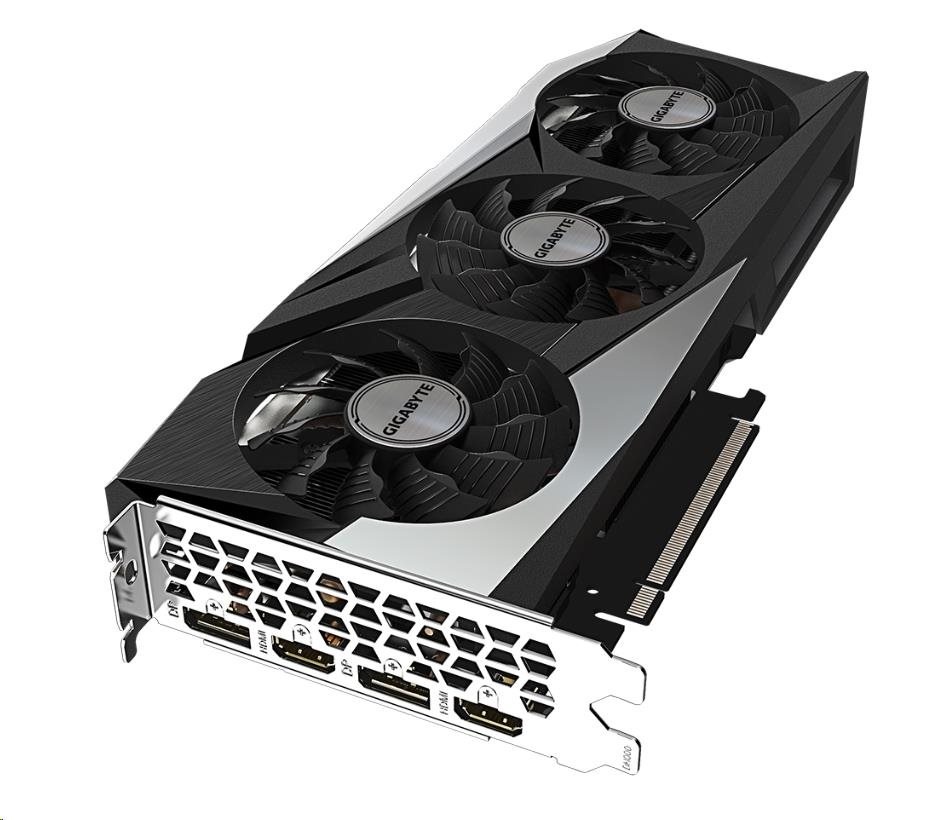

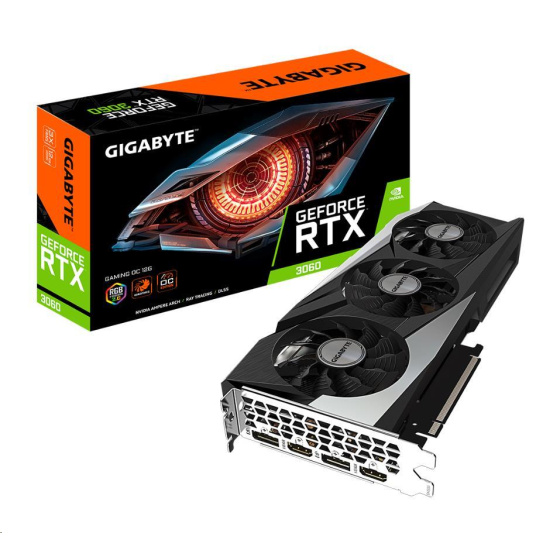

GIGABYTE VGA NVIDIA GeForce RTX 3060 GAMING LHR OC 12G 2.0, 12G GDDR6, 2xDP, 2xHDMI

GeForce RTX™ 3060 GAMING OC 12G (rev. 2.0)

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3060
• Integrated with 12GB GDDR6 192-bit memory interface
• WINDFORCE 3X Cooling System with alternate spinning fans
• RGB Fusion 2.0

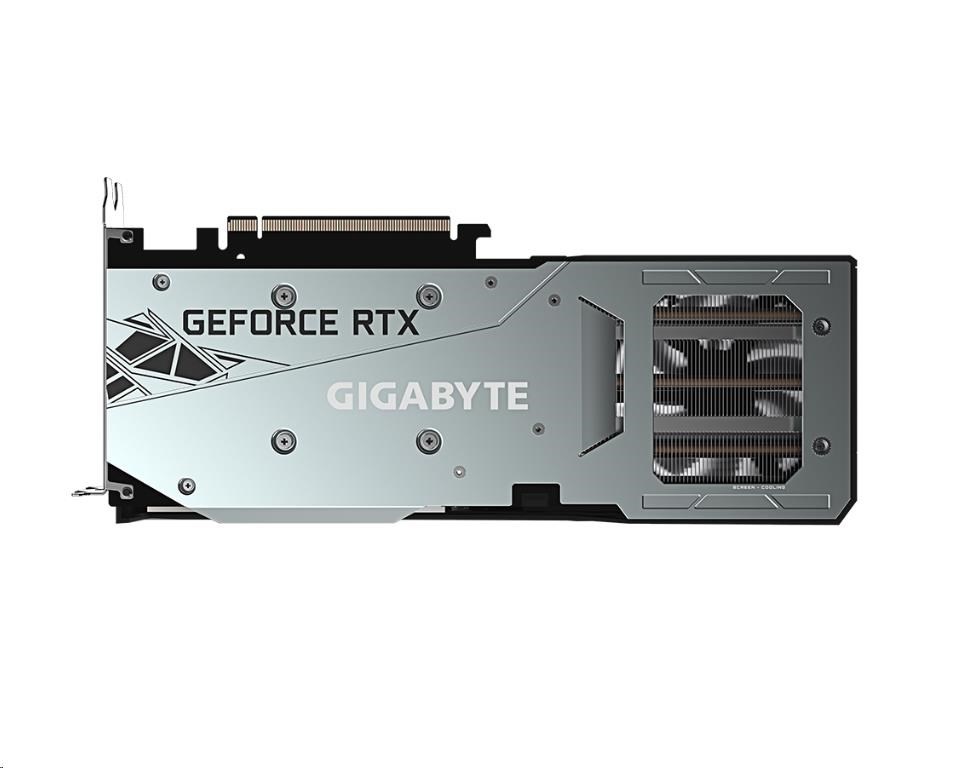

• Protection metal back plate
• Limited Hash Rate version

CORE CLOCK

• 1837 MHz (Reference Card: 1777 MHz)

Graphics Processing

GeForce RTX™ 3060

Core Clock

1837 MHz (Reference Card: 1777 MHz)

CUDA® Cores

3584

Memory Clock

15000 MHz

Memory Size

12 GB

Memory Type

GDDR6

Memory Bus

192 bit

Memory Bandwidth (GB/sec)

360 GB/s

Card Bus

PCI-E 4.0 x 16

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=117 H=41 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

550W

Power Connectors

8 pin*1

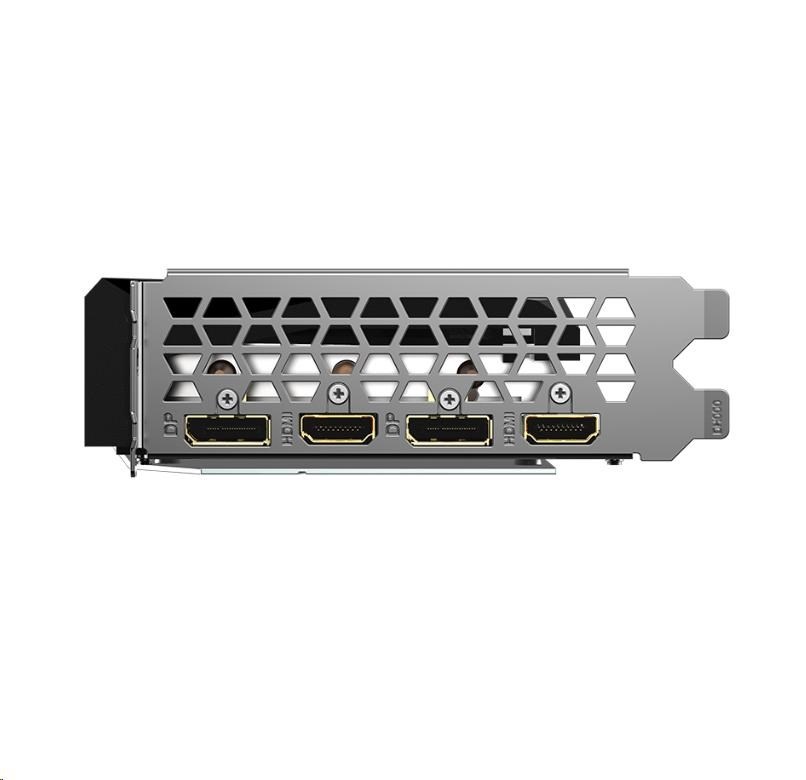

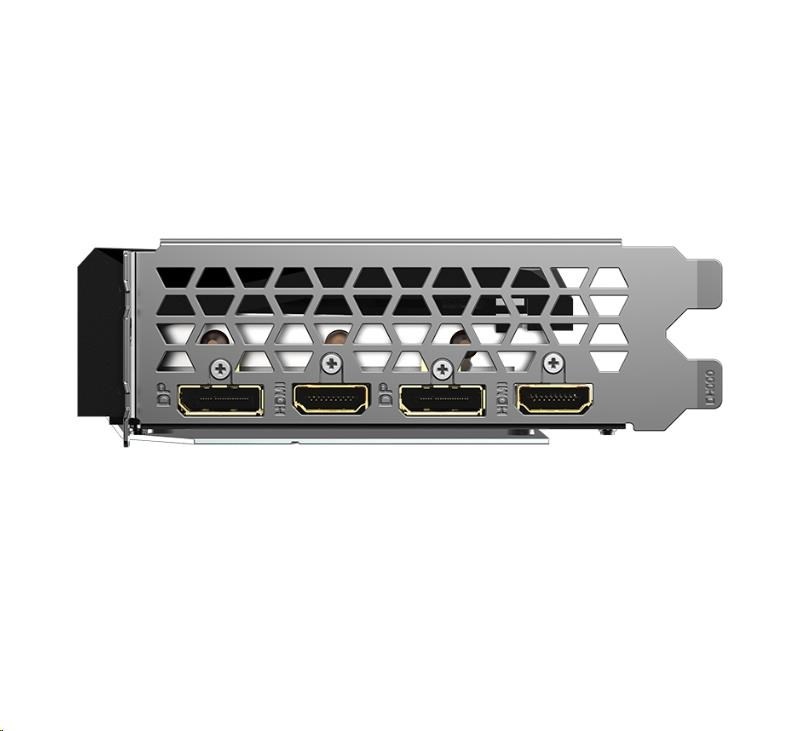

Output

DisplayPort 1.4a *2
HDMI 2.1 *2

SLI Support

N/A

Accessories

Quick guide
