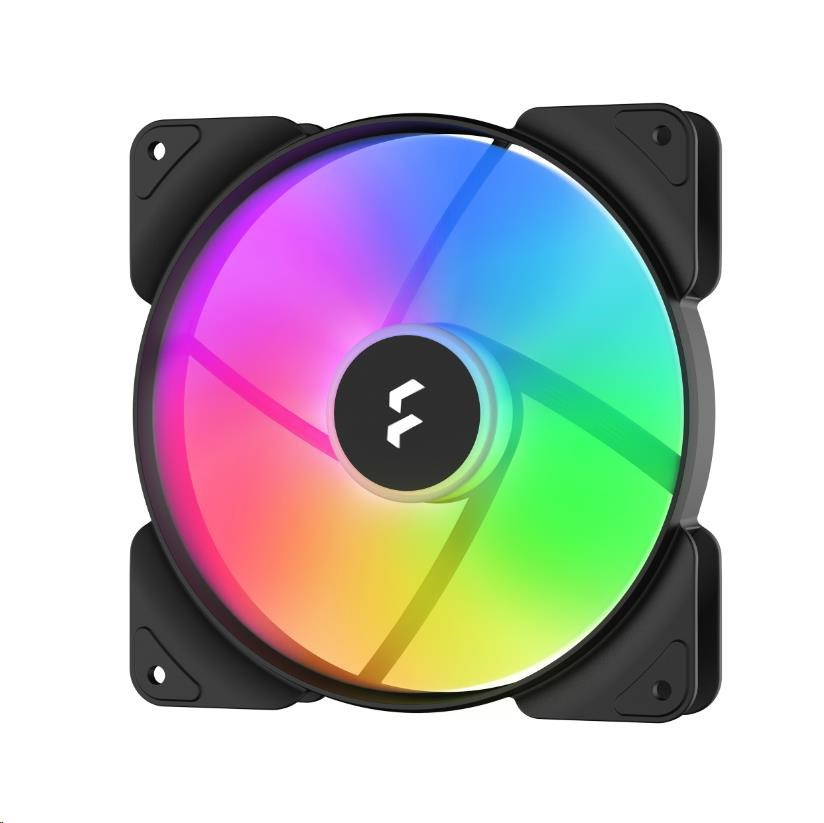

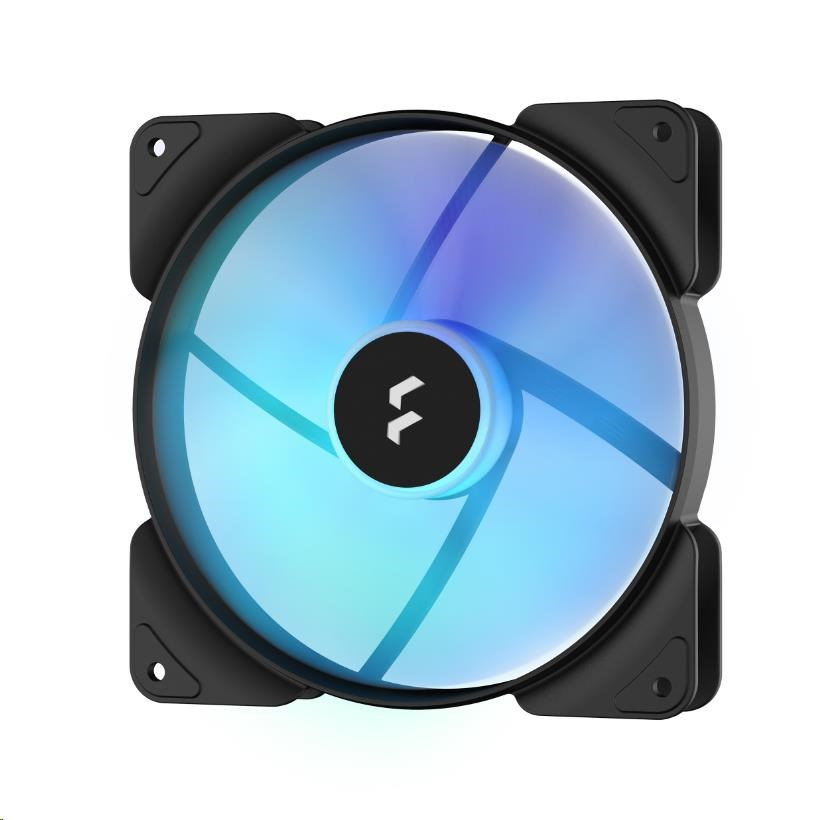

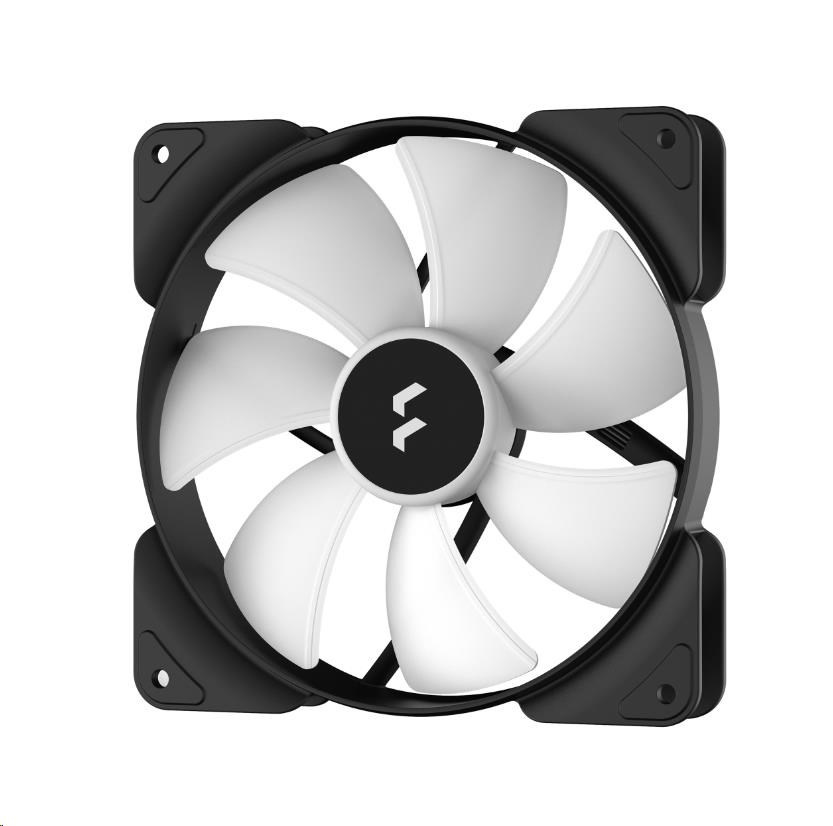

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.
TECHNICAL SPECIFICATIONS
Size | 140 x 140 x 25 mm |
Screw hole pattern | 125 x 125 mm |
LED type | Addressable RGB |
Fan Connector | 4-pin |
Bearing | Rifle |
Number of blades | 7 |
Rotation speed | 500-1700 RPM |
Noise level | <10 – 35.5 dB(A) |
Max airflow (CFM) | 20 – 78 CFM |
Max airflow (m3/h) | 34 – 132.5 m3/h |
Max pressure | 0.30 – 2.05 mm H2O |
Fan typical input power | 2.16 W |
Fan max input current | 0.24 A |
Fan input voltage | 12 V |
Minimum startup voltage | 7 V |
LED rated voltage | 5 V |
LED rated current | 0.3 A |
LED Rated input power | 1.5 W |
MTTF | 90.000 h |
Unit weight | 155 g |
Cable length | 500 mm |
Cable type | Black/White ribbon (allows chaining) |
.
