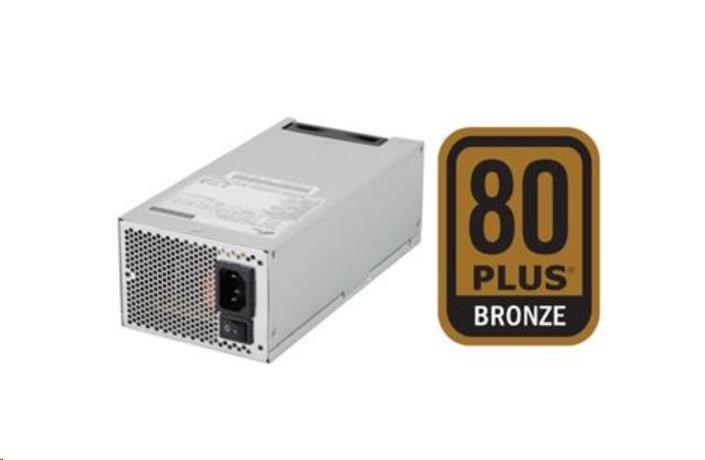

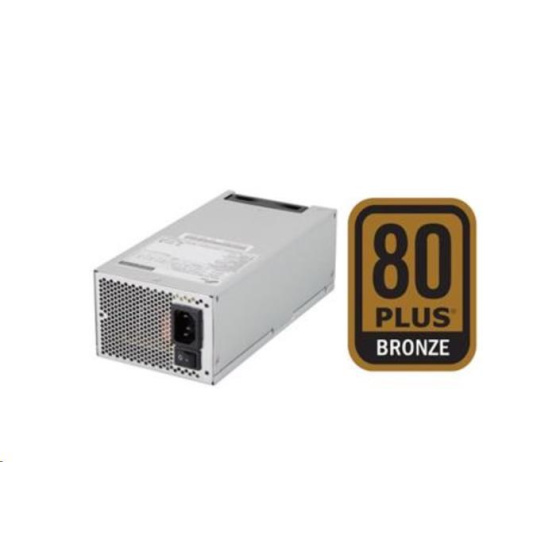

Fortron zdroj FSP400-50WCB 80PLUS BRONZE, 2U, 400W
Kód: 368575Na dotaz
Termín a způsob doručení
Formát zdroje:1U, Jiný; Výkon zdroje (ve W):400; Efektivita zdroje:80 Plus Bronze; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, ATX 4-pin.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
368575
Záruka:
24 Měsíc(ů)
Formát zdroje:
Jiný, 1U
Konektory:
PCIe 8-pin, Molex, SATA 15-pin, FDD
Konektory pro základní desku:
ATX 4-pin, ATX 24-pin
Efektivita zdroje:
80 Plus Bronze
Modulární kabeláž:
Ne
Výkon zdroje (W):
400
Popis Fortron zdroj FSP400-50WCB 80PLUS BRONZE, 2U, 400W
FSP/Fortron 2U FSP400-50WCB 80PLUS BRONZE, bulk, 400W
The FSP400-50WCB is a standard 2U switching power supply. The power supply offers a total power of up to 400 W, making it perfectly used in industrial environments. In addition, the power supply is the ideal solution for IPC control, workstation, communication or any other automation application. The product also meets the latest safety and EMC standards, which perfectly complies with various regulations around the world.
- Certified CB 62368-1 & CB 60950-1
- Meet 80 Plus Bronze
- Design for 5,000 Meter above sea level
- High Reliability
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
TECHNICAL SPECIFICATIONS
| Model | FSP400-50WCB |
| Format | 2U |
| Power supply | 400W |
| PFC | Active PFC |
| Power supply fan | 70mm |
| Efficiency | 80 Plus Bronze |
| Dimensions (L x W x H) | 200 x 100 x 70 (mm) 7.00 x 3.94 x 2.76 (inch) |
| Hold-up time at 100% | 115V / 60Hz: >= 10ms |
| Loading | 230V / 50Hz: >= 12ms |
| Operating altitude | 5,000 meters above sea leve |
| Working temperature | 0°C to 50°C |
| Storage temperature | -20°C to +80°C |
| Working humidity | 85% RH non-condensing |
| Storage humidity | 95% RH non-condensing |
| MTBF | 100,000 hours of continuous operation at 25°C, Max,-output load |
| Applications | Workstation, Storage System, IPC Controller |
| Input voltage | 90-264Vac |
| Input frequency | 47-63Hz |
| Input current | 115Vac @ 6A, 130Vac @ 3A |
| Connectors | 1x 20 + 4 PIN 1x 4pin P4 (12V) 2x SATA 3x PATA 2x PCI-E 8pin 1x FDD |
.
