Club3D Video adaptér MST (Multi Stream Transport) DisplayPort 1.4 na DisplayPort 1.4 Dual Monitor 4K60Hz (M/F), černá
Kód: 795167Na dotaz
Termín a způsob doručení
Druh IO zařízení:Video rozbočovač; Provedení:Externí.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
795167
EAN:
8719214471927
Záruka:
24 Měsíc(ů)
Druh IO zařízení:
Video rozbočovač
Provedení:
Externí
Popis Club3D Video adaptér MST (Multi Stream Transport) DisplayPort 1.4 na DisplayPort 1.4 Dual Monitor 4K60Hz (M/F), černá

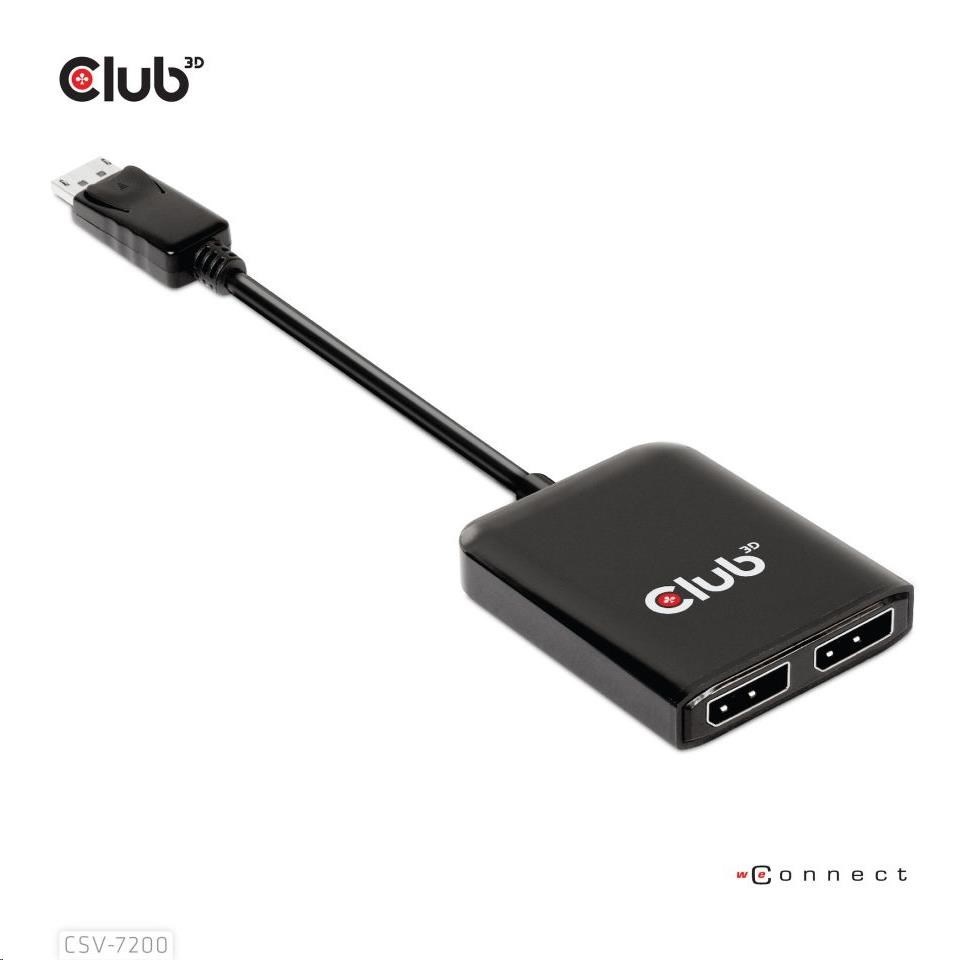

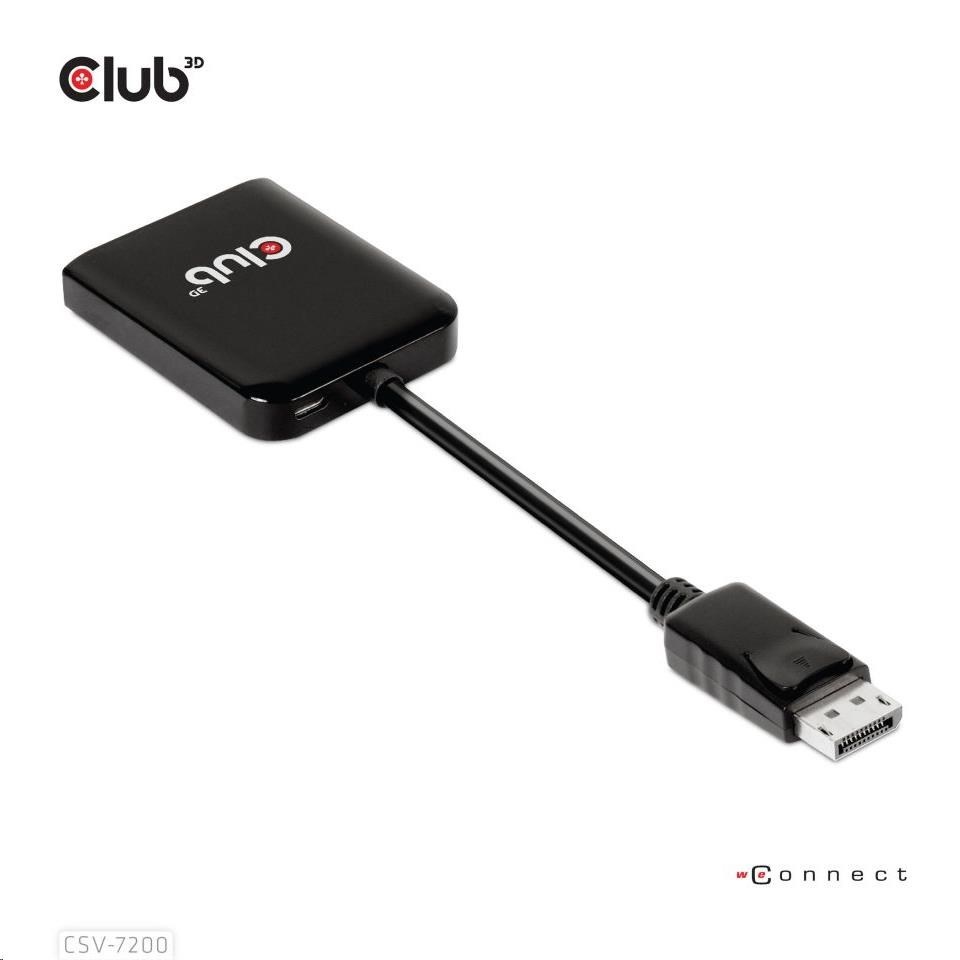

Multistream Transport (MST) Hub DisplayPort 1.4 to DisplayPort 1.4 Dual Monitor 4K60Hz M/F
The CSV-7200 is a DP™1.4 Alt Mode to DisplayPort™ Dual Monitor 4K60Hz M/F MST hub. This DisplayPort™ MST hub is designed to cater for your most versatile connectivity demands, such as Tablet, laptop, etc. with a DisplayPort™1.4 output which supports DP™1.4 Alt-Mode.
Give your Ultrabook more displays. Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single DisplayPort™ port available you can now drive one- or two- Displayport™ screen simultaneously at 4K60Hz or One display at 4K120Hz. All it needs is a free DisplayPort™ port with DP™1.4 Alt-Mode on your Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Dual 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.
- Support dual display 3840 x 2160 @ 60HZ
- Support for BT.2020 color space, HDR
- Upstream port:
- DisplayPort™1.4 port with DP™1.4 Alt-Mode support
- Downstream port - Windows(MST model):
- Support Dual Displayport™ (3840 x 2160@60Hz)
- Support Single Displayport™ (3840 x 2160@120Hz)
- or MAC OS(SST model)*
- This resolution specification might be limited by the device itself
TECHNICAL SPECIFICATIONS
| OS Support | Windows®10, Mac OS® |
| In the box | - CSV-7200, Multistream Transport (MST) Hub DisplayPort™1.4 auf DisplayPort™1.4 Dual Monitor 4K60Hz M/F - CAC-1408, USB 3.2 Gen1 Type-A to Micro USB Cable M/M 1m /3.28ft for External Power |

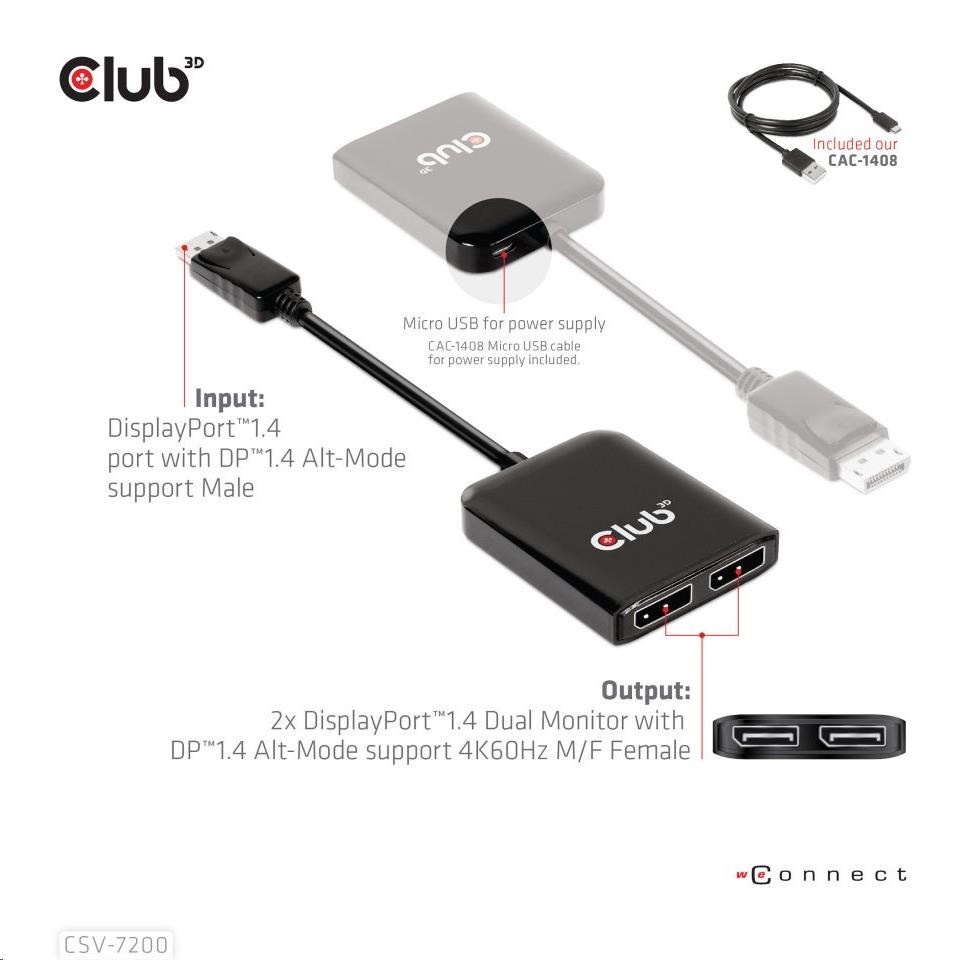

| Available Interfaces | Input: DisplayPort™ Male Output: 2x DisplayPort™ Female |

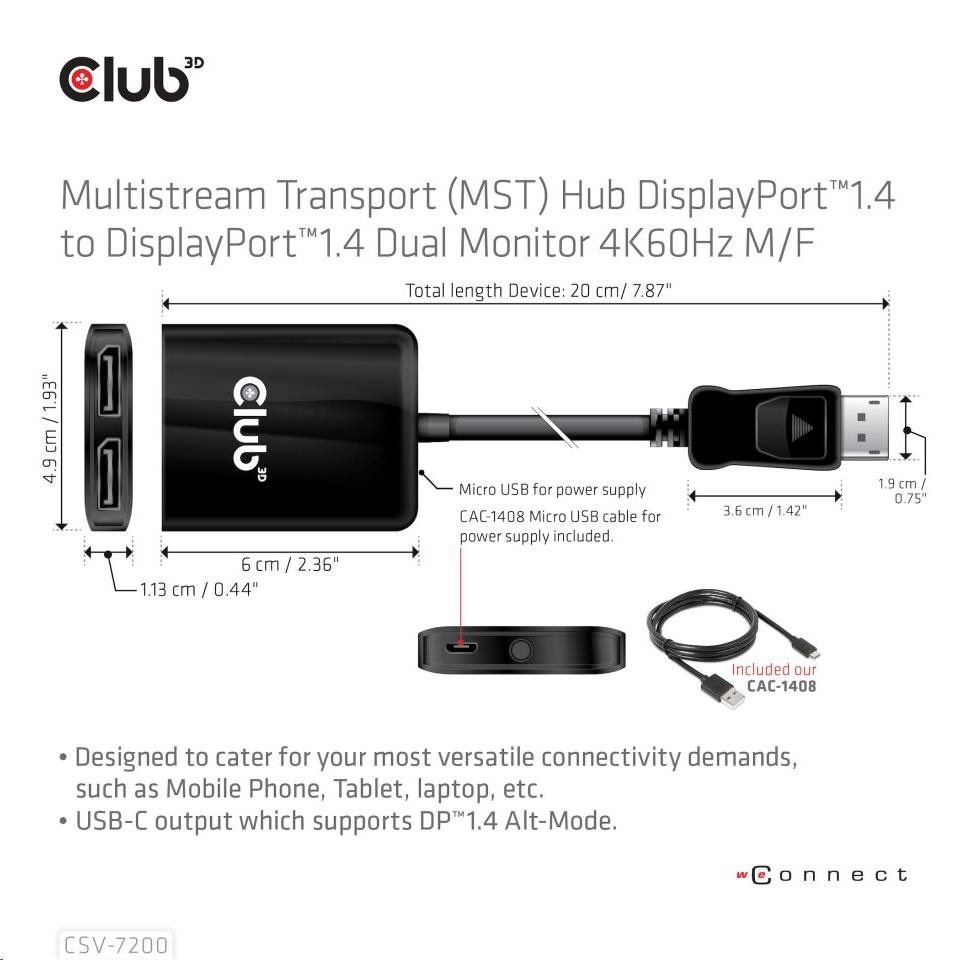

| Box size | 6x24x3.5cm / 2.36 x 9.45 x 1.38" |
| Device size | 6 x 4.9 x 1.13 cm / 2.36 x 1.93 x 0.44" |
| Total length Device | 20 cm/ 7.87" |
| CAC-1408 Cable Weight | 26 gr/ 0.95 oz |
| Device Weight | 50 gr / 1.76 oz |
| Box Weight | 28 gr / 0.99 oz |
| LDPE Bag Weight | 5 gr / 0.17 oz |
| Total Weight | 109 gr / 3.87 oz |
In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.
