CHIEFTEC zdroj SteelPower Series 650W, BDK-650FC, 80+ Bronze
Kód: 1022660Na dotaz
Termín a způsob doručení
Formát zdroje:ATX; Výkon zdroje (ve W):650; Efektivita zdroje:80 Plus Bronze; Konektory:PCIe 8-pin, SATA 15-pin, Molex, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Modulární kabeláž.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022660
EAN:
753263077424
Záruka:
60 Měsíc(ů)
Formát zdroje:
ATX
Konektory:
Molex, SATA 15-pin, PCIe 8-pin, FDD
Konektory pro základní desku:
EPS 8-pin, ATX 24-pin
Efektivita zdroje:
80 Plus Bronze
Modulární kabeláž:
Ano
Výkon zdroje (W):
650

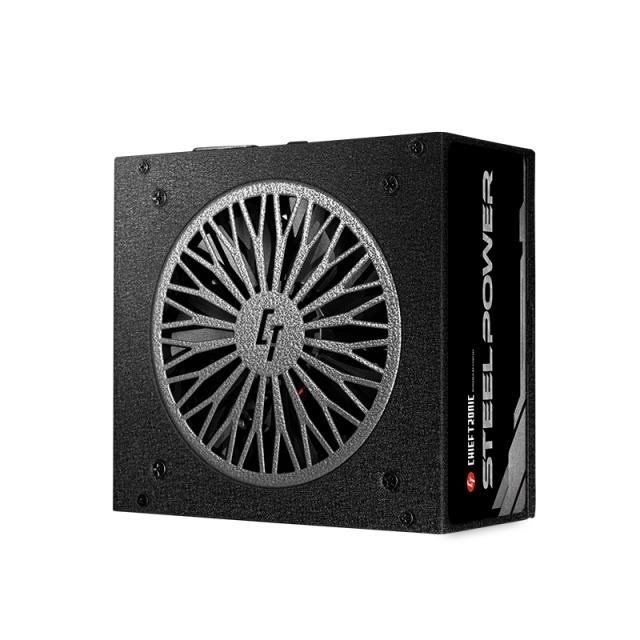

Popis CHIEFTEC zdroj SteelPower Series 650W, BDK-650FC, 80+ Bronze
SteelPower SERIES
- 80 PLUS® Bronze certified efficiency
- Fully modular cable management
- Half-bridge LLC converter with DC-to-DC technology
- Premium Japanese capacitors

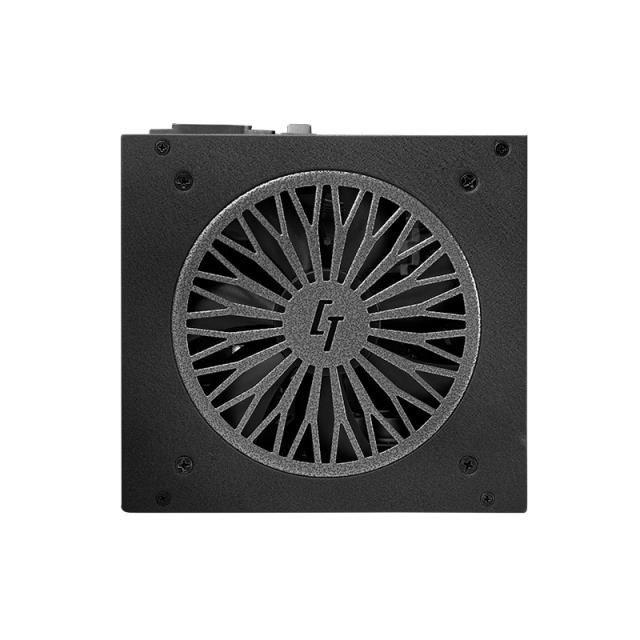

- FDB 12cm fan
TECHNICAL SPECIFICATIONS
| Model | Steel Power |
| Article no. | BDK-650FC |
| EAN code | 0753263077424 |
| Weight (without/with package) | 1.65kg / 2.2kg |
| AC input | 100-240V / 8.0A |
| Frequency | 47 - 63Hz |
| +5V | 20.0A |
| +3.3 V | 20.0A |
| +5 V & +3.3 V combined | 110W |
| +12 V1 | 54.0 A |
| +12V2 | - |
| +12V1, +12V2 combined | 648W |
| P.F. | >0,9 |
| -12 V | 0,3A / 3,6W |
| + 5VBS | 2,5A / 12,5W |
| Maximum Power | 650W |

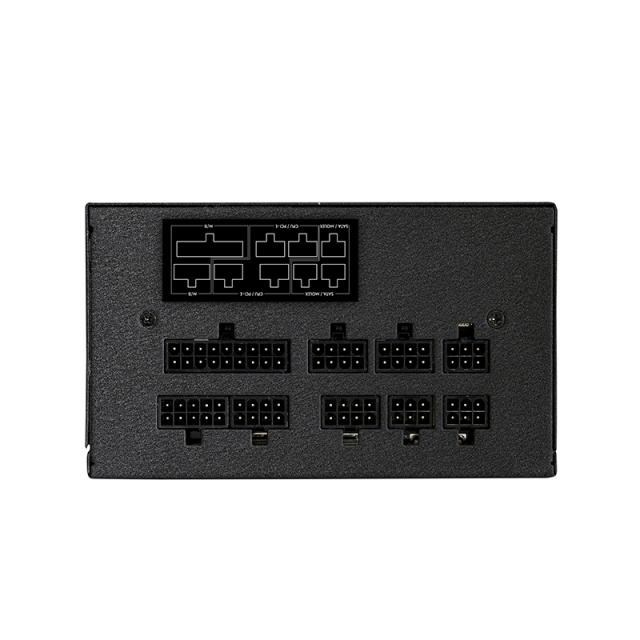

| Connectors | |
| 20+4 PIN ATX | 1 |
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 6 |
| MOLEX | 3/1 |
| Cable length (mm) | |
| 20+4 PIN ATX | 650 |
| 8 PIN EPS (4+4) | 600/150 |
| 8 PIN PCIe (6+2) | 2 x 500/150 |
| SATA | 2x 500/150/150 |
| MOLEX / FLOPPY | 500/150/150/150 |
| Features | |
| ATX12V Version | ATX 12V 2.3 |
| Efficiency | 80 PLUS® Bronze |
| Dimension (D x W x H) | 140 x 150 x 86mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm FDB silent fan |
| Security | AFC (Automatic Fan speed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over-temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection) |
| Warranty | 60 Months |
.
