CHIEFTEC zdroj Photon Gold, GDP-650C-RGB, 650W, ATX-12V V.2.3/EPS-1alt01-202V, PS-2, 14cm RGB fan, >90%
Kód: 1022582Na dotaz
Termín a způsob doručení
Formát zdroje:ATX; Výkon zdroje (ve W):650; Efektivita zdroje:90+; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž; Podsvícení:RGB.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1022582
EAN:
753263075895
Záruka:
24 Měsíc(ů)
Formát zdroje:
ATX
Konektory:
PCIe 8-pin, FDD, Molex, SATA 15-pin
Konektory pro základní desku:
ATX 24-pin, ATX 20-pin, EPS 8-pin
Vlastnosti zdroje:
Modulární kabeláž
Efektivita zdroje:
90+
Modulární kabeláž:
Ne
Podsvícení:
RGB
Výkon zdroje (W):
650
Popis CHIEFTEC zdroj Photon Gold, GDP-650C-RGB, 650W, ATX-12V V.2.3/EPS-1alt01-202V, PS-2, 14cm RGB fan, >90%
Supports all renowned RGB synchronization systems

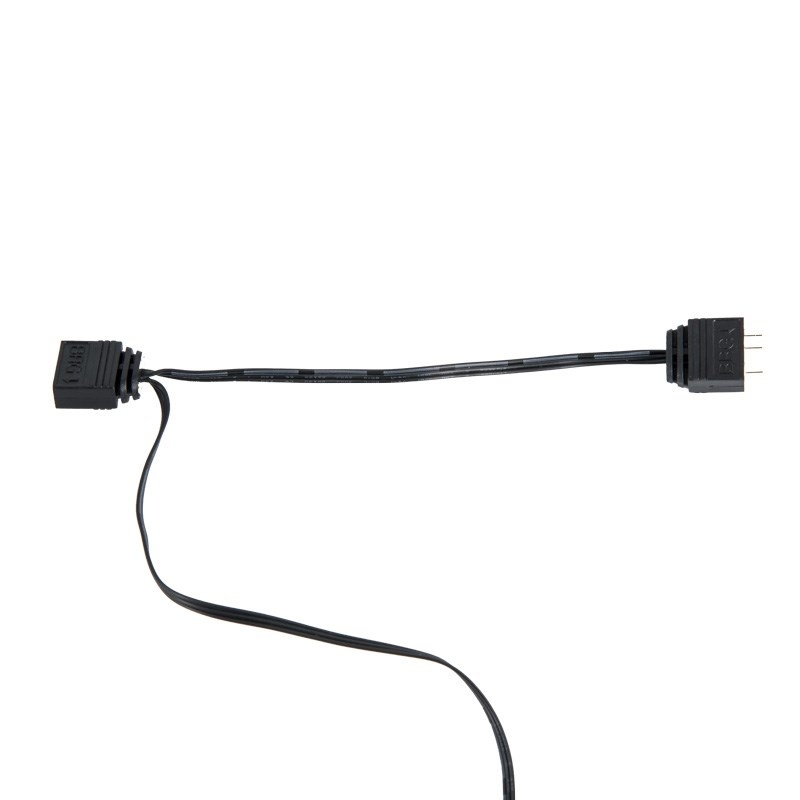

- Rainbow RGB fan with a +5V addressable LED connector
- High-Performance (90% Eff. @230V) RGB Gaming
The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION.
Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
Performance
| Model | Photon Gold 650W |
| Article no. | GDP-650C-RGB |
| EAN code | 0753263075895 |
| Weight (without/with package) | 2,12 kg/ 2,52 kg |
| AC Input | 200-240V / 5A |
| Frequency | 47 - 63Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 120W |
| +12V 1 | 53A / 636W |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 2,5A / 12,5W |
| Maximum Power | 650W |
Connectors
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 6 |
| MOLEX | 3 |
| FLOPPY | 1 |
| +5V RGB LED | 1 |

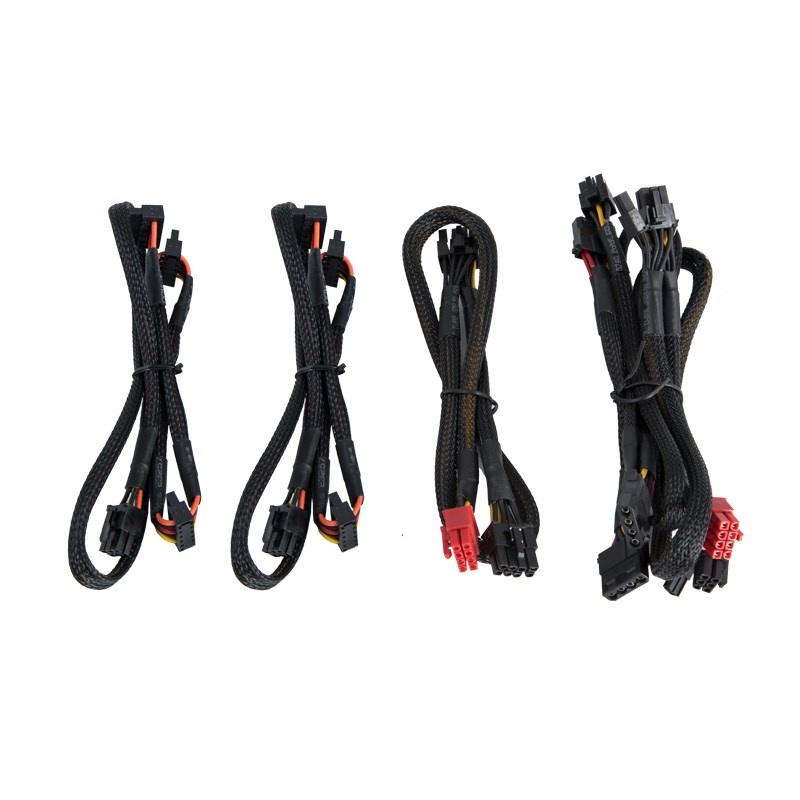

Cable length
| 20+4PIN ATX | 550 |
| 8 PIN EPS (4+4) | 550 |
| 8 PIN PCIe (6+2) | 2x 550/150 |
| SATA | 2x 550/150/150 |
| MOLEX | 550/150/150/150 |
| FLOPPY | Molex |
| +5V RGB LED | 550 |
Features
| Specification | ATX 12V 2.3 |
| Form factor | PS II |
| Efficiency | >90% |
| Lightning modes | 14x dynamic modes integrated |
| Dimension (DxWxH) | 160 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) (only 230V) |
| Fan | 140mm silent RGB Rainbow fan |
| Security |
|
| Warranty | 24 Months |
.
