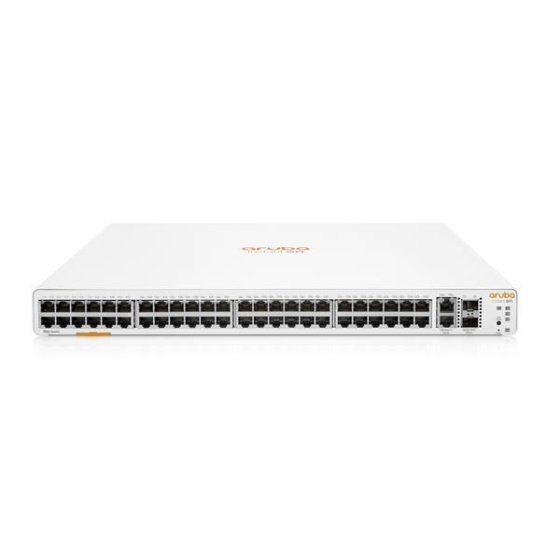

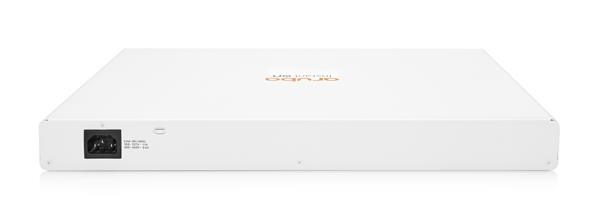

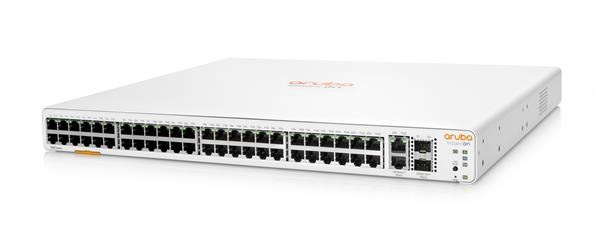

5 x Aruba Instant On 1960 48G 2XGT 2SFP+ Switch ( 5 pack )

Name: 5 x Aruba Instant On 1960 48G 2XGT 2SFP+ Switch ( 5 pack )
Brand: Hewlett Packard Enterprise
SKU: 1881069
Price: 187644 CZK
Availability: PreOrder

Kód: 1881069

Ihned k odeslání

Termín a způsob doručení

Hewlett Packard Enterprise

Provedení:Desktop, Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, Stohovatelnost, L2, Web management/Smart switch, VPN; Technologie:Gigabit Ethernet + 10 GbE porty; Počet portů LAN:48; Počet portů LAN:48; Přenosová rychlost LAN (Mb/s):131; Přenosová rychlost LAN (Mb/s):131; Počet SFP portů:4.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

Hewlett Packard Enterprise

Kód:

1881069

Záruka:

99 Doživotní

Maximální počet portů:

Provedení:

Rack mounted 19", Desktop

Technologie:

Gigabit Ethernet + 10 GbE porty

Management:

Web, SNMP/RMON

Funkce:

QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, Stohovatelnost, L2, Web management/Smart switch, VPN

Počet SFP portů:

Počet SFP+ portů:

Počet portů LAN:

Ventilátor:

Ano

Počet portů SFP28:

Přenosová rychlost LAN (Mb/s):

131

Počet portů LAN:

Přenosová rychlost LAN (Mb/s):

131

Maximální počet portů:

Počet SFP portů:

Počet SFP+ portů:

Počet portů SFP28:

Počet USB 2.0:

Popis 5 x Aruba Instant On 1960 48G 2XGT 2SFP+ Switch ( 5 pack )

5 x Aruba Instant On 1960 48G 2XGT 2SFP+ Switch ( 5 pack )

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 Mbps ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 10GbE ports 2 10GBASE-T ports

Dimensions

350.5(d) x 442.5(w) x 43.95(h) mm

Weight

9.8 lb (4.4 kg)

CPU

Single-Core ARM v7 Cortex-A9 @800MHz

100 Mb Latency

< 4.4 uSec

1000 Mb Latency

< 2.2 uSec

10000 Mb Latency

< 1.1 uSec

Throughput (Mpps)

131 Mpps

Capacity

176 Gbps

Routing Table size (# of static entries)

32 IPv4/IPv6

MAC Address table size (# of entries)

16,000 entries

Reliability MTBF (years)

109.4

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics¹

LWAd = 2.9 Bel Notes¹: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200-240VAC

Current

1.1A/0.4A

Maximum power rating

100-127V: 110W 200-220V: 120W

Idle power

100-127V: 60W 200-220V: 80W

PoE power

-

Power Supply

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 4

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting Positions and Supported Racking

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Transceivers

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)

Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)

Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)

Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)

Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)

.
