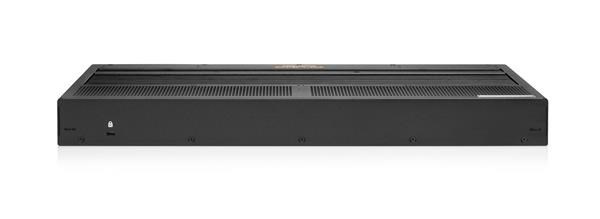

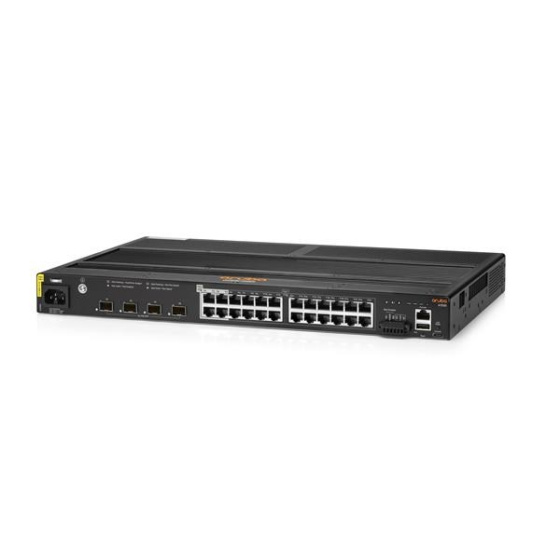

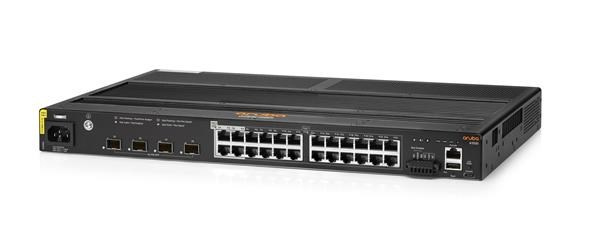

Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch
Kód: 713850Na dotaz
Termín a způsob doručení
Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), L3; Technologie:Gigabit Ethernet 1000Mbps; PoE budget (W):370; Počet SFP portů:4; Počet SFP portů:4; Maximální počet portů:24; PoE budget (W):370; Přenosová rychlost LAN (Mb/s):570; Maximální počet portů:24; Management:SNMP/RMON.Více
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
713850
Záruka:
24 Doživotní
Maximální počet portů:
24
Provedení:
Rack mounted 19"
Technologie:
Gigabit Ethernet 1000Mbps
Management:
SNMP/RMON
Vlastnosti switche:
Funkce POE po portech
PoE budget (W):
370
Přenosová rychlost LAN (Mb/s):
570
Funkce:
QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), L3
Počet SFP portů:
4
Maximální počet portů:
24
Počet SFP portů:
4
PoE budget (W):
370
Popis Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch
Řada přepínačů Aruba CX 4100i je moderní řada odolných ethernetových přepínačů, které jsou ideální pro připojení IoT, přístupových bodů a uživatelských zařízení v náročných podmínkách. Přepínače Aruba CX 4100i, vytvořené pro vysoký výkon, spolehlivost a přístup se zvýšeným zabezpečením, poskytují všestranné možnosti nasazení pro podnikové sítě, které přesahují kobercové plochy i do náročných venkovních a průmyslových prostor.
Klíčové vlastnosti
- Odolnost přepínačů Aruba CX
- Výkonnost a síla
- Zjednodušená konfigurace a správa
- Inteligentní segmentace
Technické parametry
Porty a sloty
- 4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
- 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
- 4x 1G/10G SFP ports
- 1x USB-C Console Port
- 1x RJ45 Console
- 1x USB Type A Host port
- 1x Alarm socket
Procesor a paměť
- 4 GB DDR3 32 GB eMMC Dual Core ARM Cortex A9 @ 1016 Mhz
Rozměry
- V:44 mm x Š:444.5 mm x H:304.4 mm
Hmotnost
- 6,47 kg
| Aruba 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch (JL818A) | ||
| Description | 4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port | |
| 4x 1/10G SFP ports | ||
| Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) | ||
| 1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket | ||
| Power Supplies | Fixed internal power supply (300W) | |
| 240W of PoE Power (no de-rating) | ||
| Fans | Fanless | |
| Physical Characteristics | Dimensions | (H) 44 mm x (W) 444.5 mm x (D) 304.4 mm 1.73" x 17.5" x 12.0" |
| Weight | 6.50 kg (14.33 lbs) | |
| Mounting And Enclosure | Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately | |
| Additional Specifications | CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory And Flash | 4 GB DDR3 32 GB eMMC | |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) | |
| Performance | Model Switching Capacity | up to 128 Gbps |
| Model Throughput Capacity | up to 95 Mpps | |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 1.585µSec , 10 Gbps: 1.243µSec | |
| Switched Virtual Interfaces (dual stack) | 16 | |
| IPv4 host table (ARP) | 756 | |
| IPv6 host table (ND) | 576 | |
| IPv4 unicast routes | 576 | |
| IPv6 unicast routes | 576 | |
| MAC Table Size | 8192 | |
| IGMP Groups | 512 | |
| MLD groups | 512 | |
| IPv4/IPv6/MAC ACL entries (ingress) | 256 / 128 / 256 | |
| Environment | Operating temperature | -40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM) |
| Non-Operating Storage relative humidity | 5% to 95%, non-condensing | |
| Max Operating Altitude | up to 4.2 km (13800 ft) Max | |
| Max non-operating Altitude | 4.6 km (15000 ft) Max | |
| Electrical Characteristics | Frequency | 50Hz/60Hz |
| AC voltage | 100V-240V | |
| DC Input Voltage | N/A | |
| Current | max 3.9A/1.9A (240W PoE) | |
| Maximum heat dissipation BTU/hr | 117 BTU/hr at 230V - Room temperature (25°C) | |
| Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC) | Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W
*Heater will only turn on at extreme low temperature condition | |
| Safety | Europe: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN 62368-1, Ed.2:2014
North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14
Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1 | |
| EMC | Europe: EN 55011:2010/CISPR 11, Class A EN 55032:2015/CISPR 32, Class A EN 55035:2017/CISPR 35 EN 61000-3-2:2014, Class A EN 61000-3-3:2013
US: FCC CFR 47 Part 15: 2018 Class A
Canada: ICES-003 Class A
Japan: VCCI Class A
Taiwan (BSMI) CNS 13438 Class A
Korea KN 35:2015
Korea KN 32 Class A
Aus/NZ AS/NZS CISPR 32 Class A
Worldwide: VCCI Class A CISPR 11 Class A CISPR 22 Class A CISPR 32 Class A CISPR 24:2010 | |
| Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) | |
| Industry Specific Compliance | Industrial | EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity |
| Power Substation | IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking | |
| Railway Application | EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment | |
| Traffic Control System | NEMA TS 2-2016 | |
| Protection Standard | EN 60529 IP30 | |
| Immunity | Generic | EN 55035, CISPR 35, KN35 |
| EN | EN 55035, CISPR 35 | |
| ESD | EN 61000-4-2 (air - 15kV, contact - 8kV) | |
| Radiated | EN 61000-4-3 (10V/m UTP, 20V/m STP) | |
| EFT/Burst | EN 61000-4-4 4kV (1kV UTP, 4kV STP) | |
| Surge | EN 61000-4-5 2kV/4kV(UTP) | |
| Conducted | EN 61000-4-6 (3Vrms UTP, 10Vrms STP) | |
| Power Frequency Magnetic Field | EN 61000-4-8 (100A/m 1min,1000A/m 1sec) | |
| Damped Oscillatory Magnetic Field | EN 61000-4-10 (100A/m) | |
| Conducted CM Disturbances | EN 61000-4-16 (30V, Cont/300V, 1 sec) | |
| Ripple Immunity DC Power | EN 61000-4-17 (10%) | |
| Damped Oscillatory Wave | EN 61000-4-18 (2.5kV, 1MHz) | |
| Voltage Dips and interruptions | EN 61000-4-29; EN 61000-4-11 (Level 3) | |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
| Flicker | EN 61000-3-3, IEC 61000-3-3 | |
| Dynamics | Vibration | IEC 60068-2-6 & 64 (operation & nonoperation) |
| Shock | IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple) | |
| Railway Application | Compliance to EN 50155 (mounting) & IEC 61373 | |
| Mounting and Enclosure | Mounts to an EIA/TIA standard 19" telco rack. Mounting brackets included with product. | |
| Wire | Power Input | C15 Connector |
| Alarm connector | AWG 18-16 | |
| PoE Budget | 240W no derating. | |
